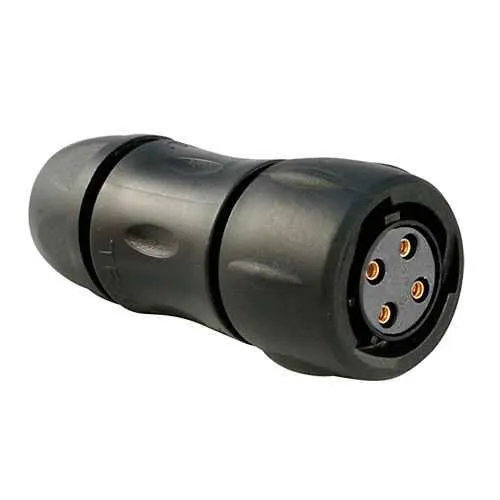

Eaton UTS6JC12E4S Plastic Waterproof Plug - IP68/69K
Part Number: UTS6JC12E4S
Quick Summary
Eaton Souriau UTS6JC12E4S waterproof IP68/69K connector enables reliable sealed connections in harsh environments. In demanding settings, maintaining a reliable seal and quick mating can be a major challenge. It complies with RoHS exemptions and industrial standards such as IEC 61984 and UL 1977, delivering robust IP68 protection. The four gold-plated solder contacts, 1/3 bayonet coupling, and straight backshell support fast assembly and dependable signal integrity. This makes it a strong choice for automation projects, machine builders, and field installs needing secure, sealed electrical connectors. From general maintenance to harsh outdoor deployments, the UTS series reduces downtime and simplifies spare parts inventories.
Product Information
Extended Description
UTS6JC12E4S Eaton: Plastic plug, with cable gland backshell, with 4 female solder contacts, IP68/69K in unmated conditions; UTS6JC12E4S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E4S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32.2 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability Last mate first break capability(optional)
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against gasoline Resistant against mineral oil Resistant against acid bath Resistant against oil
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
500 V UL 300 V IEC 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature: IP68/69K sealing and rugged housing. Business Impact: Superior ingress protection minimizes downtime and keeps equipment productive in dust, water, or washdown scenarios. Application: Industrial automation, outdoor equipment, and food‑processing lines where washdowns are routine. Feature: Gold-plated solder cup contacts and four‑contact layout. Business Impact: Ensures reliable electrical conductivity and corrosion resistance for long service life. Application: 4‑cavity sensor, actuator, or power/signal harnesses in conveyors and packaging machines. Feature: 1/3 bayonet coupling and straight backshell. Business Impact: Quick, tool‑free mating and straightforward field maintenance, reducing install time by hours per project. Application: Assembly lines and mobile equipment where rapid commissioning is critical. Feature: Cable gland backshell with neoprene insert and 3–12 mm cable diameter range. Business Impact: Flexible cabling options with robust strain relief, lowering rework due to improper fits. Application: Machinery that uses multi‑strand or bundled cables in harsh environments. Feature: Operating temperature range −40 °C to 105 °C and 250 mating cycles. Business Impact: Consistent performance across temperature swings and repeated connect/disconnect cycles, ensuring uptime. Application: Outdoor stations, tractors, and industrial robots. Feature: Compliance and safety scope (UL 1977, IEC 61984, RoHS Exemption 6.c, CSA‑C22.2 No.182.3). Business Impact: Meets recognized safety and environmental standards, simplifying procurement and audits. Application: Regulated facilities and factory automation projects requiring traceable conformity.
Get a Quick Quote for a Eaton UTS6JC12E4S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E4S?
Enquire Now
FAQs
Install by aligning the plug with its mate and seating the 1/3 bayonet coupling firmly. Use the backshell sealing gland for the cable entry, ensuring the 3–12 mm cable fits without exceedance. Verify the IP68 rating after assembly by testing immersion or spray scenarios as per your enclosure requirements. The connector ships with the complete harness-ready plug.
This UTS model supports RoHS exemptions and compliance to IEC 61984 and UL 1977, with CSA-C22.2 No.182.3 referenced for specific integrations. It is rated IP68 for ingress protection, including submersion in relevant environments, making it suitable for industrial equipment subject to rigorous regulatory expectations.
Yes. The IP68/69K rating, UV resistance, and vibration tolerance (IEC 60512-4 range 10–2000 Hz) make it well-suited for outdoor installations and high‑vibration machinery. It also resists oils, mineral fuels, and acidic baths, which helps maintain signal integrity and longevity in harsh production lines and field deployments.
Current rating is 10 A UL and 16 A IEC, with a test current of 7 A CSA. Test voltage is 500 V UL and 500 V CSA, 300 V IEC. The connector supports up to 250 mating cycles, balancing durability with practical service life in frequent connect/disconnect applications.
The UTS6JC12E4S uses a 4‑cavity layout with a straight plug and sealing gland backshell, designed to fit Souriau UTS harnesses. It accepts 3–12 mm cables and employs gold‑plated solder cups for reliable signal delivery. Delivered with the connector, it simplifies integration into existing automation and control harnesses for fast deployment.
