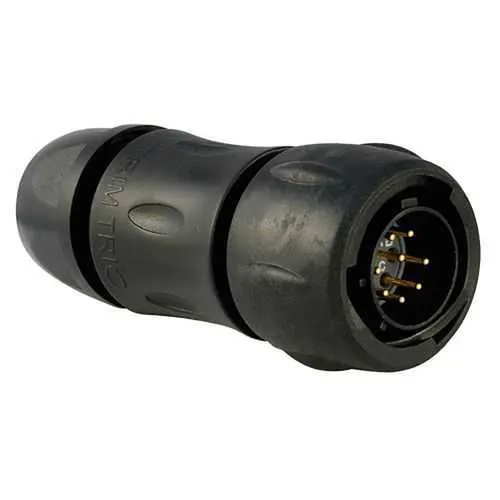

Eaton UTS6JC12E8PX Plastic Waterproof Connector IP68/69K
Part Number: UTS6JC12E8PX
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69K connector is designed to deliver reliable, sealed connections in harsh environments. In the field, moisture, dust and vibration complicate maintenance and can lead to downtime; this connector maintains IP68/69K protection even unmated, reducing failure risk. It complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with ROHS exemption 6.c, ensuring broad regulatory coverage. By pairing with Souriau UTS backshells and 8‑pin gold-plated solder contacts, it supports robust, maintainable integrations for control panels, sensors, and outdoor equipment, delivering long service life and predictable performance.
Product Information
Extended Description
UTS6JC12E8PX Eaton: Plastic plug, with cable gland backshell, with 8 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC12E8PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8PX
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
30.5 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
6 A IEC 4.5 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4.5 A UL 6 A IEC 4.5 A CSA
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
The UTS6JC12E8PX offers IP68/69K sealing with a sealing gland backshell, delivering watertight integrity in wet or dusty environments and minimizing corrosion-driven downtime, which translates to lower maintenance costs and longer service intervals in outdoor automation installations. Its 8 gold-plated solder cup contacts ensure reliable, low-impedance connections that resist degradation over time, improving signal integrity for critical control and sensing loops. With a 1/3 bayonet coupling and straight plug orientation, mating is quick and vibration-resistant, reducing install time and rework during panel wiring. The backshell and neoprene insert combine to provide durable environmental sealing while accommodating cable diameters from 3 to 12 mm, enabling flexible on-site routing and compatibility with a wide range of field devices. Designed for 6 A IEC (4.5 A UL/CSA) and up to 250 V, it supports common automation peripherals with safety margins. 66.7 mm length and compact 29.7 mm profile simplify panel penetration and maintain a clean enclosure. The 250 mating cycles specification offers predictable lifecycle planning, while UV and chemical resistance extend service life in challenging industrial environments. Compatibility with the Souriau UTS series backshells enhances installation efficiency and spare-part availability for refurbished or expanding systems.
Get a Quick Quote for a Eaton UTS6JC12E8PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8PX?
Enquire Now
FAQs
The UTS6JC12E8PX uses a straight plug with a 1/3 bayonet coupling and a sealing-gland backshell, compatible with Souriau UTS series backshells. It supports cable diameters from 3 to 12 mm, enabling flexible routing in panel cutouts and field installations. This combination streamlines installation, reduces the risk of misalignment, and ensures a reliable seal once mated.
The connector is rated for 6 A IEC and 4.5 A UL/CSA, with test voltages up to 250 V (UL/CSA) and 32 V (IEC). It supports 8 contacts with gold-plated solder cups, and a mating cycle life of about 250 cycles, providing dependable performance for routine maintenance cycles and rapid field swaps.
Yes. It is an IP68-rated device, with unmated protection, and features a sealing gland backshell along with neoprene insert material to resist moisture, UV exposure, and various fluids. The design also offers resistance to salt spray (500 hours) and broad chemical exposure, making it ideal for outdoor enclosures, rain-prone areas, and wash-down environments.
The connector complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with ROHS exemption 6.c. These certifications support safety, performance, and environmental compliance across North American and European markets, helping with procurement and installation authorizations in regulated environments.
With 250 mating cycles, gold-plated contacts, and robust environmental resistance (UV, oils, acids, and salt spray), the UTS6JC12E8PX reduces maintenance downtime and part replacements. Its reliable sealing and easy mating save labor costs during installation and service, while compatibility with existing Souriau UTS backshells simplifies spares management and lifecycle planning.
