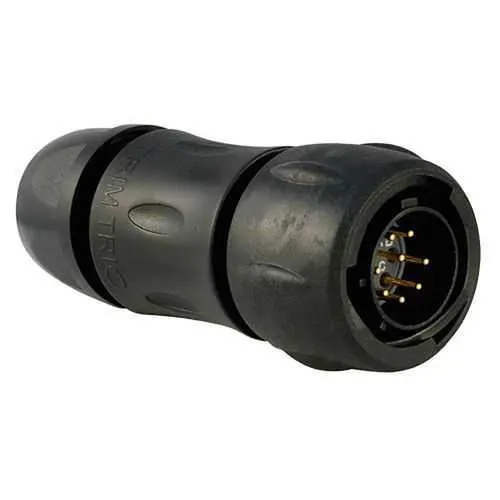

Eaton UTS6JC12E8PZ Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC12E8PZ
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector delivers reliable, sealed connections for rugged automation environments. In harsh plants, ingress and washdowns can trigger costly downtime and rework, but this plug is designed to resist moisture and contamination. It carries IEC 61984, UL 1977 and CSA-C22.2 No.182.3 approvals, with ROHS exemption 6.c, and achieves IP68 protection in unmated conditions for dependable field service. This combination supports fast, compliant installation and long service life. By enabling robust automation wiring harnesses and sensor networks, it helps engineering teams cut maintenance costs while meeting global standards and supplier quality requirements.
Product Information
Extended Description
UTS6JC12E8PZ Eaton: Plastic plug, with cable gland backshell, with 8 male solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC12E8PZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8PZ
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
30.5 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
6 A IEC 4.5 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against mineral oil Resistant against basic bath
Test current
4.5 A UL 4.5 A CSA 6 A IEC
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68/IP69K sealing and backshell with sealing gland. Benefit: Prevents ingress in washdowns and harsh environments, reducing unplanned outages and maintenance cycles. Application: Industrial conveyors and robotic cells benefit from reliable, sealed connections. Feature: Eight gold-plated Solder Cup contacts with a 1/3 bayonet coupling. Benefit: Ensures low contact resistance, durable mating, and quick field assembly, improving installation time by reducing tool needs. Application: Control panels and sensor interfaces in automation lines. Feature: Straight plug with Neoprene insert and Plastic shell (Shell size 12). Benefit: Compact, robust design that tolerates tight spaces while maintaining seal integrity and environmental resistance. Application: Space-constrained industrial equipment and portable machinery. Feature: Cable diameter range 3–12 mm and rated operating temp -40 to 105 °C. Benefit: Flexible cabling options and reliable performance across temperature swings, reducing the need for different housings. Application: Outdoor machinery, oil/gas environments, and high-temperature washdowns. Feature: Mating cycles of 250 and current rating of 6 A IEC (4.5 A UL/CSA). Benefit: Predictable lifecycle, lower replacement costs, and consistent electrical performance under typical industrial loads. Application: Machinery feeders, robotics, and automation networks. Feature: Gold contact plating and eight contacts with IP68 protection. Benefit: Superior corrosion resistance and signal integrity for critical connections in harsh environments. Application: Industrial sensors, actuation modules, and control interfaces. Integrated insight: The UTS6JC12E8PZ is designed to pair with a sealing gland backshell, improving wire integrity and strain relief during installation, a common pain point in field upgrades and retrofits in manufacturing facilities.
Get a Quick Quote for a Eaton UTS6JC12E8PZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8PZ?
Enquire Now
FAQs
The UTS6JC12E8PZ uses eight solder cup contacts with a 3–12 mm cable diameter range and a straight backshell, designed to mate with standard UTS series components. Its sealing gland backshell and 1/3 bayonet coupling simplify field assembly while preserving IP68 protection.
It complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications validate electrical safety, environmental compliance, and global applicability for industrial automation installations.
Current rating is 6 A IEC (4.5 A UL/CSA), test current 4.5 A UL/CSA and 6 A IEC, with test voltage 32 V IEC and 250 V UL/CSA. Operating temperature ranges from -40 °C to 105 °C, suitable for demanding industrial environments.
Yes. With IP68 ratings in unmated condition, UV resistance, and oil/gas resistance, the connector is designed to withstand washdowns, oils, and prolonged exposure typical of outdoor or harsh indoor environments.
Its 250 mating cycles, sealed gland backshell, and gold-plated contacts ensure longevity and consistent performance, reducing replacement costs and downtime while enabling faster field upgrades and easier maintenance scheduling.
