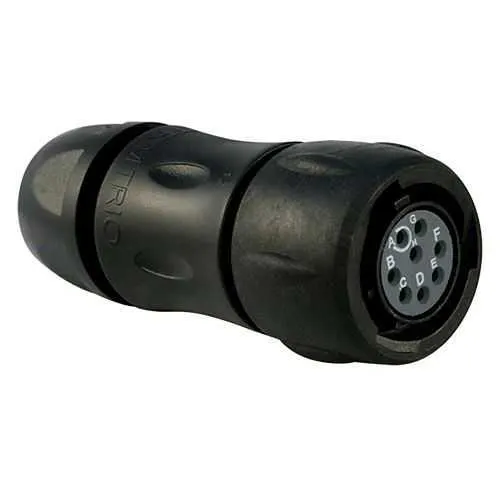

Eaton UTS6JC12E8S Plastic Waterproof Connector - IP68
Part Number: UTS6JC12E8S
Quick Summary
The Eaton Souriau UTS6JC12E8S plastic waterproof connector delivers sealed electrical connections for harsh industrial environments. In the field, moisture, oil, or dust intrusion can derail uptime and drive costly downtime on conveyors, packaging lines, and outdoor equipment. This plug is engineered for IP68 sealing and complies with IEC 61984, UL 1977, and CSA C22.2 No.182.3, providing safe, regulator-friendly performance. Its compact UTS series design with a sealing gland backshell streamlines installation, reduces enclosure footprint, and speeds field maintenance. With eight gold-plated solder contacts, it supports dense wiring while maintaining high reliability across operating temperatures from -40 to 105 °C.
Product Information
Extended Description
UTS6JC12E8S Eaton: Plastic plug, with cable gland backshell, with 8 female solder contacts, IP68/69K in unmated conditions; UTS6JC12E8S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8S
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
6 A IEC 4.5 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against basic bath Resistant against gasoline Resistant against mineral oil
Test current
4.5 A UL 6 A IEC 4.5 A CSA
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
IP68/IP69K sealing and a rugged plastic shell offer dependable protection from water, dust, and chemical exposure, reducing ingress-related faults on washdown lines and outdoor equipment. The result is less unscheduled downtime and more consistent machine availability in tough environments. Eight gold-plated solder cup contacts provide low resistance and stable signal paths for compact harnessing, enabling high-density wiring in control panels and machinery while maintaining reliability through vibration and temperature cycles. The 1/3 bayonet coupling and straight plug orientation simplify mating, aligning connectors quickly even in tight spaces, which translates to faster installation and easier field maintenance. Operating range from -40 °C to 105 °C and a current rating of 6 A IEC (4.5 A UL/CSA) with a 32 V limit cover typical industrial and automation scenarios safely. The backshell uses a sealing gland for reliable strain relief, and the insert is neoprene, ensuring environmental compatibility. With UV resistance and resistance to oil, acids, mineral oil, and gasoline, the connector stands up to harsh service life. Mated durability reaches 250 mating cycles, and the product comes ready to install with connector accessories included, streamlining project timelines.
Get a Quick Quote for a Eaton UTS6JC12E8S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8S?
Enquire Now
FAQs
Begin by selecting the straight plug, ensuring the orientation is set to N, and fit the Sealing Gland backshell for strain relief. Use cables with 3–12 mm diameter, route to the 8‑cavity housing, and mate firmly to achieve IP68 protection. Verify the connection is clean and secure before commissioning.
The connector supports 6 A IEC current (4.5 A UL/CSA), with a voltage rating up to 250 V (UL/CSA) and 32 V (IEC). It operates from -40 °C to 105 °C and provides 250 mating cycles, making it suitable for demanding automation and control circuits while maintaining reliable performance.
Yes. The IP68/IP69K sealing provides excellent protection against water and dust in washdown environments, and its UV resistance plus oil, mineral oil, and gasoline robustness make it appropriate for outdoor machinery, conveyors, and process equipment exposed to harsh conditions.
The UTS6JC12E8S conforms to IEC 61984 and UL 1977, with CSA C22.2 No.182.3 compliance and ROHS exemption 6.c. These certifications support safe integration into regulated equipment and help meet regional electrical and environmental requirements.
With eight contact positions and gold-plated solder cups, the connector delivers reliable, low-resistance connections in dense wiring. The 1/3 Bayonet coupling and straight plug orientation simplify mating, while a 66.7 mm depth, 29.7 mm width/height form-factor fits compact control panels and harnesses, enabling rapid field assembly and maintenance.
