Eaton UTS6JC12E8SW Connector - IP68/69K Waterproof
Part Number: UTS6JC12E8SW
Quick Summary
Eaton UTS6JC12E8SW is a plastic waterproof IP68/69K connector designed for rugged industrial automation and outdoor equipment. Users struggle with moisture, dust, and vibration that cause intermittent connections, especially in harsh environments. The unit complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption 6.c, providing regulatory peace of mind. It features a straight backshell with a sealing gland, 8 gold-plated solder cup contacts, and a 1/3 bayonet coupling for quick, secure mating. With a mating cycle rating around 250 and an operational range of -40 to 105 °C, it supports reliable performance from factory floors to remote sites, complementing Souriau UTS cable assemblies. This combination delivers lower maintenance costs and longer service life for mission-critical equipment.
Product Information
Extended Description

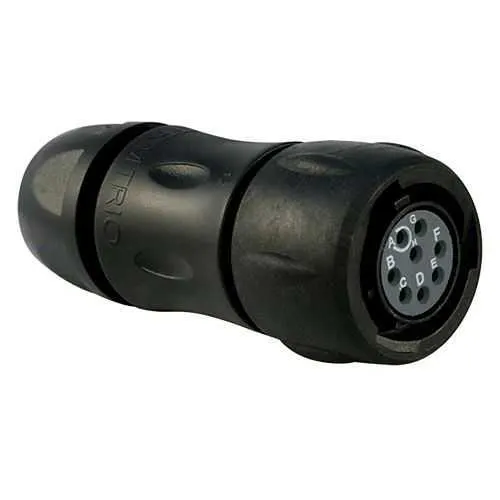

UTS6JC12E8SW Eaton: Plastic plug, with cable gland backshell, with 8 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC12E8SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8SW
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
4.5 A UL 6 A IEC
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath
Test current
4.5 A UL 4.5 A CSA 6 A IEC
Test voltage
250 V CSA 250 V UL 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68/69K sealing for submersible-grade protection. Business Impact: Prevents water ingress and contamination, reducing unplanned downtime and warranty costs. Application: Outdoor automation panels and washdown environments benefit from sealed reliability. Feature: 8-contact Solder Cup configuration with gold plating. Business Impact: Ensures low contact resistance and long-term corrosion resistance, improving signal integrity. Application: Sensor networks and control circuits where stable connections are essential. Feature: 1/3 Bayonet coupling with straight backshell. Business Impact: Fast, tool-less mating and secure retention, minimizing installation time and field service complexity. Application: On-site cable assemblies in tight or hard-to-reach spaces. Feature: Operating temperature range -40 to 105 °C. Business Impact: Reliable operation across extreme climates, reducing the need for part variants. Application: Industrial environments with wide temperature swings. Feature: Mating cycles rated at 250. Business Impact: Extended lifecycle reduces maintenance intervals and total cost of ownership. Application: Repetitive assembly and disassembly in equipment retrofit projects. Feature: Cable diameter range 3 to 12 mm. Business Impact: Flexible compatibility with multiple harness configurations, lowering inventory variety. Application: Mixed cable assemblies in control panels and field installations. Feature: Gold-plated contacts. Business Impact: Improved corrosion resistance and conductivity for harsh environments. Application: Marine, outdoor, and chemical-exposure scenarios. Feature: Compliance with UL 1977, CSA-C22.2 No.182.3, IEC 61984, and RoHS exemption 6.c. Business Impact: Facilitates regulatory approvals and supply-chain confidence. Application: Certified components for industrial machinery deployments.
Get a Quick Quote for a Eaton UTS6JC12E8SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8SW?
Enquire Now
FAQs
The UTS6JC12E8SW uses a sealing gland backshell and accepts cable diameters from 3 to 12 mm. It features a straight backshell orientation and a 1/3 bayonet coupling for quick mating. For optimal performance, use the Souriau compatible backshell assembly and ensure the contacts are gold-plated Solder Cup type to maintain low contact resistance.
This connector offers a current rating of 4.5 A (UL) and up to 6 A (IEC), with a test voltage of 250 V (UL/CSA) and 32 V (IEC). It has 8 contacts, gold plating, and a mating life of about 250 cycles, making it suitable for reliable control wiring in harsh environments while meeting UL 1977 and IEC 61984 standards.
Yes. The plug is IP68-rated and UV resistant, with RoHS-compliant materials and a sealing gland backshell designed for exposure to moisture, dust, and oils. Its environmental resistance, including resistance to mineral oil and acid bath tests, supports durability in outdoor installations and washdown facilities.
The connector complies with UL 1977 for industrial/commercial connectors, CSA-C22.2 No.182.3, and IEC 61984. RoHS exemption 6.c further confirms material restrictions compliance. These certifications help streamline approvals for equipment built for global markets and support long-term reliability in certified projects.
With 250 mating cycles and durable gold-plated contacts, the USB-like reliability reduces maintenance frequency and contact wear. The robust IP68/69K sealing minimizes downtime due to moisture ingress, while the flexible cable diameter range simplifies inventory. Together, these factors contribute to lower lifecycle costs and higher overall equipment uptime.
