Eaton UTS6JC12E8SX Plastic Waterproof Connector - IP68/69k
Part Number: UTS6JC12E8SX
Quick Summary
The Eaton Souriau UTS6JC12E8SX is a plastic waterproof IP68/69k connector designed for harsh industrial environments. When field conditions include moisture, vibration, or outdoor exposure, unreliable seals and ingress can trigger costly downtime. This part carries UL 1977 and IEC 61984 certifications with CSA-C22.2 No.182.3, and an IP68 rating that ensures unmated protection; RoHS exemption 6.c supports compliance in restricted markets. For design teams and procurement, it translates to longer service life, reduced maintenance, and regulatory alignment across global deployments. Leveraging the Souriau UTS series, it also offers compatibility with backshell options and easy downstream integration into rugged automation architectures, delivering tangible business value through reliability and streamlined installation.
Product Information
Extended Description

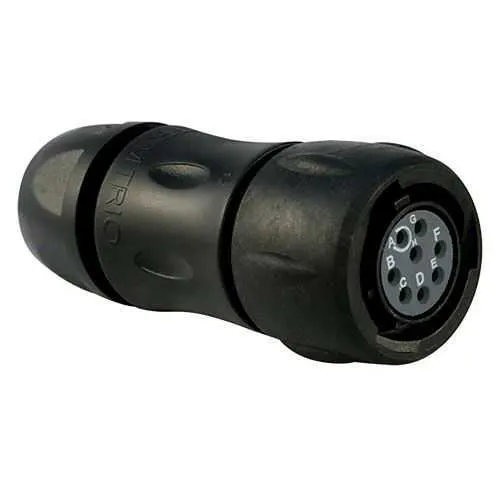

UTS6JC12E8SX Eaton: Plastic plug, with cable gland backshell, with 8 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC12E8SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8SX
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
6 A IEC 4.5 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil Resistant against acid bath Resistant against gasoline
Test current
4.5 A CSA 6 A IEC 4.5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68 protection in unmated conditions combined with eight gold-plated solder cup contacts. Business Impact: Provides superior moisture sealing and corrosion resistance, reducing ingress-related failures and downtime. Application: Outdoor controls, sealed motor drives, and rugged automation where liquid exposure is common. Feature: 1/3 bayonet coupling for fast, secure mating. Business Impact: Shortens assembly time on high-volume lines and minimizes operator error. Application: Assembly lines and field installations requiring quick field service. Feature: Compact shell size 12 with 66.7 mm length and 29.7 mm width. Business Impact: Enables dense panel layouts and easier routing in tight spaces. Application: Control cabinets and compact machinery. Feature: Cable diameter range 3–12 mm and backshell with sealing gland. Business Impact: Supports common cable diameters and simplifies installation with reliable strain relief. Application: Sensor, actuator, and power transmission runs in wet environments. Feature: Temperature range -40 to 105 °C and 250 mating cycles. Business Impact: Ensures reliability across extreme climates and long service life in vibrating environments. Application: Outdoor equipment, packaging machinery, and agricultural automation. Feature: Eight contacts with solder cup, gold plating, and 1/3 bayonet. Business Impact: Maintains signal integrity and durable connections for high-reliability circuits. Application: Industrial I/O, control networks, and distributed automation. Feature: UV resistance and resistance to mineral oil, acids, and fuels. Business Impact: Sustains performance in harsh industrial fluids and sun exposure, reducing maintenance cycles. Application: Harsh industrial plants, outdoor installations, and mobile equipment.
Get a Quick Quote for a Eaton UTS6JC12E8SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8SX?
Enquire Now
FAQs
The UTS6JC12E8SX is supplied as a plug with eight female solder cup contacts, loaded, and features a sealing gland backshell. The assembly includes a straight backshell, X-keying, and a 66.7 mm length with 29.7 mm width to fit compact installations. It supports a 12 mm maximum cable diameter and ships ready for field assembly with connector in place. This configuration delivers clear sealing, ease of assembly, and proven IP68 performance in demanding environments.
Key ratings include an operating range from -40 °C to 105 °C, mating cycles up to 250, and IP68 protection. Electrical specs feature a current rating of 6 A IEC and 4.5 A UL, test current of 4.5 A CSA / 6 A IEC / 4.5 A UL, and test voltage of 250 V CSA / 32 V IEC / 250 V UL. This combination supports reliable performance in wet and vibration-prone industrial settings.
Yes. The UTS6JC12E8SX is designed for outdoor and harsh environments with IP68 protection in unmated conditions, UV resistance, and resistance to mineral oil and various chemical exposures. Its Neoprene insert and plastic shell further contribute to durable operation, while the sealing gland backshell provides robust ingress protection. It is well-suited for outdoor machinery, rugged automation, and outdoor control panels.
The connector complies with UL 1977 and IEC 61984, and CSA-C22.2 No. 182.3, with RoHS exemption 6.c. It also carries an IP68 rating and uses a 1/3 bayonet coupling, which aligns with common regulatory and safety expectations for industrial connectors across multiple regions.
Mating cycles are rated at 250, indicating solid mechanical life in high-cycle applications. The combination of IP68 ingress protection, robust materials, and gold-plated contacts translates to reduced maintenance, fewer field failures, and lower lifecycle costs. For capital equipment and automation lines, this can shorten downtime, accelerate project timelines, and improve overall return on investment.
