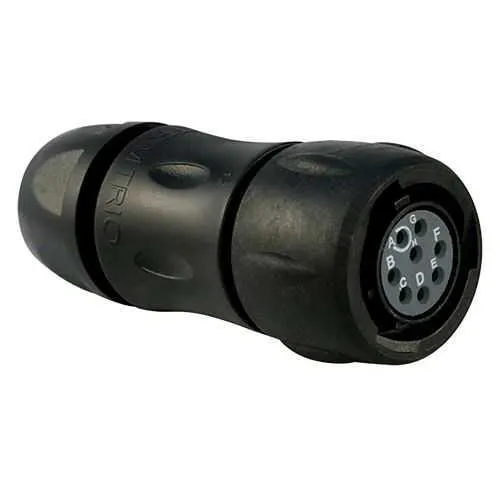

Eaton UTS6JC12E8SY Plug - IP68/69K Sealing Gland
Part Number: UTS6JC12E8SY
Quick Summary
The Eaton Souriau UTS6JC12E8SY is a plastic waterproof IP68/69K connector designed for rugged industrial environments and harsh outdoor applications. It addresses moisture ingress and unreliable seals that can plague lesser interconnects in wet, dusty, or vibration-prone settings. Compliance with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, along with ROHS exemption 6.c, ensures broad regulatory acceptance. The 8-contact, gold-plated solder-cup design with a sealing gland backshell and Y-keying delivers reliable field service in compact form, while supporting straightforward installation and maintenance. This combination of rugged performance and recognized standards helps engineering teams reduce downtime and streamline procurement for control panels and machinery across industries.
Product Information
Extended Description
UTS6JC12E8SY Eaton: Plastic plug, with cable gland backshell, with 8 female solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC12E8SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8SY
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
6 A IEC 4.5 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
6 A IEC 4.5 A UL 4.5 A CSA
Test voltage
250 V CSA 32 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68/IP69K sealed performance with a plastic shell and neoprene insert. Business Impact: Prolonged service life in wet, dusty, or high-vibration environments with minimal maintenance. Application: Outdoor machinery, packaging lines, and harsh industrial spaces. Feature: 8 gold-plated solder cup contacts. Business Impact: Low contact resistance and corrosion resistance for reliable power and signal transfer. Application: Automation controllers, sensors, and I/O modules. Feature: 1/3 bayonet coupling with straight back and Y-keying. Business Impact: Quick, secure mating in confined spaces, reducing installation time and risk of misalignment. Application: Panel wiring and field upgrades. Feature: Wide operating temperature range -40 to 105 C. Business Impact: Consistent performance across extreme climates and processes. Application: Robotic arms, foundries, and outdoor equipment. Feature: 250 mating cycles and 3–12 mm cable diameter range. Business Impact: Durable life-cycle and flexible harness design for common industrial cables. Application: Maintenance cycles and new build integrations. Feature: Sealing gland backshell and 8-position insert in neoprene. Business Impact: Enhanced environmental sealing and compatibility with standard Souriau UTS accessories. Application: OEM enclosures and control cabinets in demanding environments.
Get a Quick Quote for a Eaton UTS6JC12E8SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8SY?
Enquire Now
FAQs
The UTS6JC12E8SY is part of the UTS series and features an 8-cavity socket configuration with a 1/3 bayonet coupling, straight back, and Y-keying. It accepts 3 to 12 mm cable diameters and uses solder cup contacts. It is designed to mate with matching UTS series plugs and receptacles, providing sealed, rugged connections for industrial panels and machinery.
This connector provides 6 A current rating per IEC standards and 4.5 A per UL, with test voltages up to 250 V for UL/CSA and CSA-rated 250 V. It carries gold-plated solder cup contacts, ensuring low contact resistance and reliable performance in automation and control circuits.
Yes. The plug is rated IP68 (unmated) and IP69K, with a sealing gland backshell and neoprene insert. Its operating temperature range of -40 to 105 C makes it suitable for exposed outdoor installations, high-vibration machinery, and environments with moisture, oil, or dust exposure.
The device complies with UL 1977, IEC 61984, CSA-C22.2 No.182.3, and RoHS exemption 6.c. These certifications support regulatory acceptance in North America and Europe, simplifying supplier qualification for control panels, machinery, and automation equipment.
With a mating cycle rating of 250, the UTS6JC12E8SY is designed for durable field service and periodic maintenance. The gold-plated contacts reduce wear and corrosion, while the sealing gland backshell improves environmental sealing, helping lower maintenance costs and downtime in continuous operation environments.
