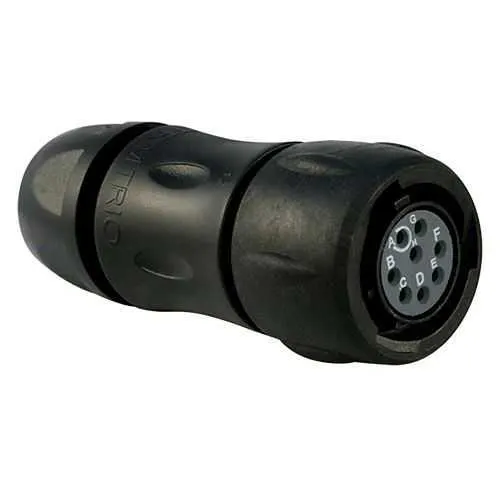

Eaton UTS6JC12E8SZ Connector - IP68/69K Waterproof
Part Number: UTS6JC12E8SZ
Quick Summary
Eaton UTS6JC12E8SZ is a plastic waterproof IP68/69K connector designed for rugged automation and harsh environments. In field installations, sealing failures and difficult cabling layouts can derail schedules; this solution addresses those challenges with a compact straight plug, 8 female solder contacts, and a robust backshell. It carries IP68/IP69K protection, UL 1977 and CSA-C22.2 No.182.3 certifications, and IEC 61984 compatibility, all reinforcing reliable performance in demanding industrial settings. For procurement and maintenance teams, the combination of sealing integrity, material durability, and straightforward installation translates to lower lifecycle cost and reduced downtime. The design also aligns well with Souriau UTS series ecosystems, offering compatibility and scalable integration for automation projects and panel builds.
Product Information
Extended Description
UTS6JC12E8SZ Eaton: Plastic plug, with cable gland backshell, with 8 female solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC12E8SZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC12E8SZ
Product Length/Depth
66.7 mm
Product Height
29.7 mm
Product Width
29.7 mm
Product Weight
32 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
6 A IEC 4.5 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against acid bath
Test current
4.5 A CSA 4.5 A UL 6 A IEC
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Cable diameter - max
12 mm
Cable diameter - min
3 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
8
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68/IP69K sealing with a sealing gland backshell. Business Impact: Provides robust ingress protection against water, dust, and harsh environments, reducing field failures and service calls. Application: Outdoor control panels and wet environments where reliable sealing is essential. Feature: 8 contact sockets with gold-plated solder cups. Business Impact: Ensures low contact resistance and corrosion resistance for long-term signal integrity. Application: Industrial sensors and actuator connections requiring durable electrical contacts. Feature: 1/3 bayonet coupling. Business Impact: Fast, tool-free mating in tight spaces, accelerating assembly and maintenance. Application: Repeated field mating in compact electrical enclosures. Feature: Operating temperature range -40 °C to 105 °C. Business Impact: Maintains performance across extreme industrial temperatures, supporting uptime across seasons. Application: Machinery in automotive, packaging, and outdoor installations. Feature: Cable diameter range 3–12 mm and shell size 12. Business Impact: Flexible cable routing with a compact footprint, enabling diverse wiring schemes. Application: OEM enclosures and retrofit projects with space constraints. Feature: 8 contacts, gold plating, straight plug, and backshell with gland. Business Impact: High reliability in signal and power paths with proven compatibility in Souriau UT S series ecosystems. Application: Control panels and field deployable assemblies requiring sealed, reusable connectors.
Get a Quick Quote for a Eaton UTS6JC12E8SZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC12E8SZ?
Enquire Now
FAQs
The UTS6JC12E8SZ ships with a sealing gland backshell and straight plug, designed for straightforward assembly in control panels. Ensure the cable diameter sits between 3 and 12 mm, then mate the 1/3 bayonet coupling to the receptacle. The gold-plated solder cups support reliable soldering, while the IP68 rating provides protection against moisture ingress during maintenance or field updates.
Electrical specs include a current rating of 6 A IEC and 4.5 A for UL/CSA, with a test current of 4.5 A and test voltage of 250 V UL/CSA (32 V IEC). The connector uses 8 gold-plated solder cup contacts, ensuring low resistance and durable performance in service, with a rated mating cycle life of 250.
This connector is ideal for harsh industrial automation environments, outdoor machinery, and equipment subject to exposure to moisture and dust. Its IP68/IP69K protection, wide operating temperature range, and backshell sealing gland make it suitable for rugged control panels, outdoor deployments, and equipment exposed to cleaning or washdown cycles.
The UTS6JC12E8SZ complies with UL 1977 and CSA-C22.2 No.182.3, and adheres to IEC 61984, with RoHS exemptions. Its IP68 rating provides ingress protection, and its design supports use in regulated environments where certified components are required for reliability and safety in industrial automation.
With 250 mating cycles, gold-plated contacts for corrosion resistance, and a robust backshell sealing gland, the UTS6JC12E8SZ minimizes field replacements and rework. The compact form factor, straightforward mating, and proven IP68/IP69K sealing translate to lower downtime, quicker installation, and a favorable return on investment for OEMs and maintenance teams.
