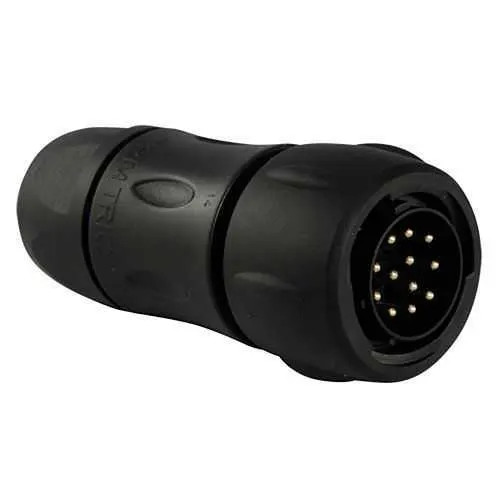

Eaton UTS6JC1412P Plastic Waterproof Plug IP68/69K
Part Number: UTS6JC1412P
Quick Summary
Eaton UTS6JC1412P plastic waterproof plug enables reliable 12-pin connections in harsh environments. In field deployments, moisture, dust ingress, and vibration threaten uptime and signal integrity. This connector delivers IP68/69K sealing and rugged build to keep critical interfaces protected in outdoor, underground, or mobile equipment. Compliance with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, alongside RoHS and UL94 V0 fire ratings, reinforces safety and regulatory adherence. The design also supports backshell backshell gland compatibility and easy routing, helping you meet installation standards while reducing maintenance. By prioritizing durability, this solution lowers total cost of ownership and improves system availability, enabling our customers to meet demanding application requirements without over-specifying components. It also complements the Eaton Souriau UTS family for scalable connectivity.
Product Information
Extended Description
UTS6JC1412P Eaton: Plastic plug, with cable gland backshell, for 12 male contacts, IP68/69K; UTS6JC1412P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1412P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against gasoline Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A UL 10 A IEC 7 A CSA
Test voltage
600 V CSA 600 V UL 63 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
IP68/69K sealing in the UTS6JC1412P plug minimizes moisture and dust ingress, reducing field failures and maintenance costs while ensuring reliable operation in wet or dusty environments. This translates to higher equipment uptime and lower service interventions in outdoor machinery and mobile fleets. The 12-pin layout with straight plug and 1/3 bayonet coupling provides secure mating under vibration, enabling fast, tool-free assembly and easier field servicing without compromising the seal. Backshell with gland simplifies cable routing and strain relief at entry points, improving installation quality and extending cable life in rugged settings. Operating from -40 °C to 105 °C and rated for up to 250 mating cycles, the connector delivers long service life in demanding industrial, process automation, and traction applications, reducing replacement costs. Crimp contacts with a polyamide insert yield a lightweight, durable solution with cost-effective stocking and easier field termination. Overall, this UTS plug supports scalable, reliable connectivity across the Eaton Souriau UTS series for growing automation systems.
Get a Quick Quote for a Eaton UTS6JC1412P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1412P?
Enquire Now
FAQs
For outdoor or mobile installations, ensure proper cable gland backshell fitment to maintain IP68/69K integrity. Use the 1/3 bayonet coupling for secure mating during vibration, and route cables through the gland to avoid strain on terminations. Verify cable diameter within 5 to 14 mm to preserve seal performance and prevent ingress. Plan for adequate space at the mating end to allow straightforward connection and disconnection during maintenance.
The connector provides a 12-pin crimp contact arrangement with a current rating of 10 A per UL and IEC standards and is suitable for up to 600 V test voltage (CSA/UL). It supports up to 250 mating cycles, and operates across a wide temperature range from -40 °C to 105 °C, ensuring reliable performance in demanding industrial environments.
Yes. The UTS6JC1412P uses a 1/3 bayonet coupling for secure, quick mating and a backshell with gland to protect the cable entry. This combination simplifies installation, improves sealing integrity, and aids in maintaining cable strain relief. The straight orientation further eases routing in crowded enclosures and panels.
The connector adheres to IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS compliance and UL94 V0 fire rating. These certifications support regulatory alignment for electrical assemblies, product safety, and environmental restrictions, helping you meet industry mandates for automotive, industrial, and electrical equipment applications.
The 12-pin IP68/69K plug reduces maintenance frequency due to superior sealing and durability, decreasing downtime and service costs in harsh environments. High mating cycles and robust materials lower replacement and stocking costs, while straightforward installation shortens commissioning time. In mobile and outdoor equipment, these factors collectively improve uptime, reliability, and long-term total cost of ownership.
