Eaton UTS6JC1412SW Connector for Harsh Environments IP68/69K
Part Number: UTS6JC1412SW
Quick Summary
UTS6JC1412SW is a plastic waterproof IP68/69K connector for rugged industrial harnesses. Engineers need seals that last under vibration, temperature swings, and exposure to oils. It meets UL 1977, CSA-C22.2 No. 182.3, and IEC 61984 compliance, ensuring safety, interchangeability, and long-term integrity in critical assemblies. The 12-position plug with a sealing gland supports reliable field service and quick, secure mating, while RoHS and REACH compliance reduce regulatory risk. This combination delivers cost efficiency and higher uptime for automation installations in harsh environments.
Product Information
Extended Description

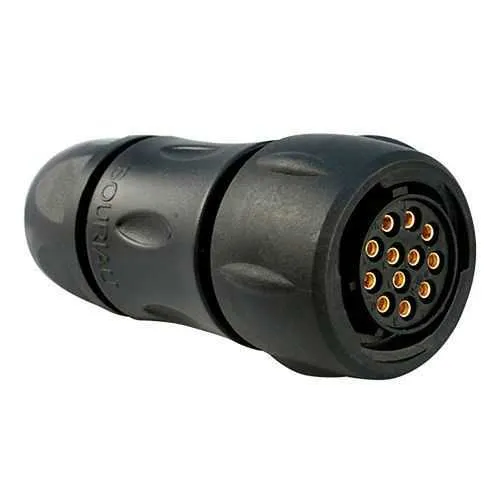

UTS6JC1412SW Eaton: Plastic plug, with cable gland backshell, for 12 female contacts, IP68/69K, keying W; UTS6JC1412SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1412SW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.4 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
10 A IEC 10 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against mineral oil Resistant against gasoline Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
600 V UL 63 V IEC 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/IP69K sealing with a sealing gland backshell and a 12-position layout. Business Impact: Provides robust ingress protection and streamlined harness routing, reducing field faults and maintenance needs in wet or dusty environments. Application: Ideal for outdoor machinery and automated lines in manufacturing, packaging, and material handling. Feature: 10 A current rating and 600 V voltage rating. Business Impact: Enables reliable power and signal transmission across demanding equipment while maintaining safety margins. Application: Power and control circuits in industrial automation and transport systems. Feature: 1/3 Bayonet coupling and straight plug with W-key orientation. Business Impact: Quick, secure mating with minimal tool requirements, improving installation efficiency and field service times. Application: Assembly in tight spaces and on modular automation cabinets. Feature: Polyamide insert and sealing gland backshell. Business Impact: Enhances chemical resistance, UV stability, and long-term environmental durability, reducing replacement intervals. Application: Unseen in harsh outdoor exposure and vibration-prone environments. Feature: 12 contacts with crimp contact type and 12 cavity layout. Business Impact: Simplifies multi-signal or mixed power connections, enabling compact, scalable harness designs. Application: Industrial sensors, actuators, and control networks. Feature: Compliance highlights include RoHS, REACH, and UL94 V0. Business Impact: Meets global regulatory requirements, lowering risk during audits. Application: Global manufacturing facilities with strict material and fire-safety standards.
Get a Quick Quote for a Eaton UTS6JC1412SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1412SW?
Enquire Now
FAQs
The UTS6JC1412SW uses the Souriau UTS family interface with 12 female contacts. For installation, prepare 5–14 mm cable diameter, crimp all 12 contacts, then assemble the sealing gland backshell. The straight backshell with W-key orientation mates with compatible UTS receptacles. It supports about 250 mating cycles and is suitable for 12-position configurations.
The connector offers a 10 A current rating (IEC/UL) and a 600 V voltage rating (UL/CSA). Operating temperature spans from -40 °C to 105 °C. It is IP68 protected, UV resistant, and RoHS/REACH compliant, with a 12-position layout and polyamide insert that withstands harsh industrial conditions and chemical exposure.
Yes. Its IP68/69K waterproof rating, UV resistance, and sealing gland backshell make it ideal for outdoor automation, transport, and outdoor machinery. The 12-position plug supports mixed power and signal, while the 1/3 bayonet coupling enables quick field mating. The design also tolerates vibration and broad temperature swings typical of outdoor deployments.
It complies with UL 1977, CSA-C22.2 No. 182.3, and IEC 61984, with RoHS and REACH conformance and a UL94 V0 fire rating. Salt spray resistance is rated at 500 hours, and the connector uses a durable polyamide insert, meeting industry expectations for safety, reliability, and environmental compliance.
The UTS6JC1412SW delivers reduced downtime through robust sealing, long-term UV and chemical resistance, and a durable 250 mating-cycle life. Its compact 12-contact layout and 10 A/600 V ratings enable reliable power and signal transmission in harsh environments, supporting lower maintenance costs, fewer field faults, and a faster return on investment for automated systems.
