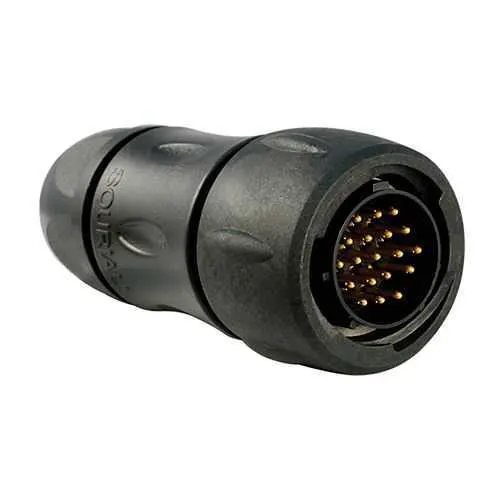

Eaton UTS6JC1419PX Plastic Waterproof IP68/69k Connector - 19-Pin Plug, 1/3 Bayonet IP68/69k
Part Number: UTS6JC1419PX
Quick Summary
Eaton Souriau UTS6JC1419PX is a plastic waterproof IP68/69k connector designed for demanding industrial and mobile equipment. Moisture, dust, and vibration are common field challenges, and this plug addresses them with a sealing gland backshell and a rugged plastic shell for long-term reliability. It carries IEC 61984, UL 1977, and CSA certifications, and meets RoHS and REACH requirements, delivering proven regulatory compliance for global projects. With 19 pins and a 5 A rating, plus a 1/3 bayonet coupling, it enables scalable I/O and straightforward installation, helping manufacturers reduce downtime and total cost of ownership in automation and equipment OEM deployments.
Product Information
Extended Description
UTS6JC1419PX Eaton: Plastic plug, with cable gland backshell, for 19 male contacts, IP68/69K, keying X; UTS6JC1419PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1419PX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.3 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
5 A UL 5 A IEC
Environmental conditions
REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against basic bath Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
5 A UL 4 A CSA 5 A IEC
Test voltage
250 V UL 32 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
The IP68/69k sealing and rugged plastic housing deliver reliable protection against water ingress and dust infiltration, which translates to reduced maintenance cycles and longer service life in washdown and outdoor environments. This 19-position plug supports complex I/O wiring with a 5 A current rating, enabling compact harnesses and fewer connectors in automation systems, thereby cutting installation time and potential failure points. The 1/3 bayonet coupling provides fast, tool-free mating and strong vibration resistance, speeding field maintenance and minimizing downtime on mobile machinery. Operating from -40 to 105 C, the connector tolerates extreme climates, ensuring consistent performance across global facilities and outdoor equipment. Backshell with sealing gland and a 5–14 mm cable diameter range adds installation flexibility, while RoHS/REACH and international certifications secure regulatory compliance for cross-border projects. The Souriau UTS series design also emphasizes durable crimp contacts and a compact footprint, enhancing overall system reliability and lowering lifecycle costs in harsh environments.
