Eaton UTS6JC1419S Connector - 19 Contacts IP68/69K
Part Number: UTS6JC1419S
Quick Summary
Eaton Souriau UTS6JC1419S is a plastic waterproof IP68/69K connector designed for 19 contacts in harsh industrial environments. This solution addresses frequent wash-down and moisture challenges that compromise signal integrity and equipment uptime. Compliance with CSA-C22.2 No.182.3, UL 1977, and IEC 61984 underscores its reliability in safety‑critical automation systems. In addition to rugged sealing, it delivers a compact footprint and straightforward crimp connectivity, supporting fast field installs. For engineers seeking durable, sector‑standard interfaces, this connector offers long service life and predictable performance in demanding production lines and outdoor applications.
Product Information
Extended Description

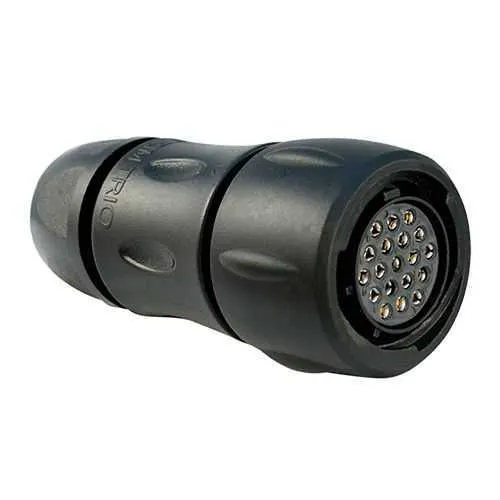

UTS6JC1419S Eaton: Plastic plug, with cable gland backshell, for 19 female contacts, IP68/69K; UTS6JC1419S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1419S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.4 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A UL 5 A IEC
Environmental conditions
Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 REACH RoHS Fire & Smoke
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against oil
Test current
4 A CSA 5 A IEC 5 A UL
Test voltage
250 V CSA 32 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
The UTS6JC1419S features IP68/IP69K sealing and a straight 1/3 bayonet coupling, which translates to reliable protection against dust, water jets, and submersion in automated environments. This reduces downtime from ingress and simplifies routine maintenance by offering a straightforward, vibration‑tolerant connection on moving equipment. The 19‑way layout with crimp contacts enables dense wiring for robust control and sensing networks, while a polyamide insert and plastic shell deliver chemical and UV resistance for extended field life. With a 5 A current rating and a mating cycle life of 250, the assembly supports steady performance in factory automation and mobile machinery. The backshell with Sealing Gland and a 5–14 mm cable diameter range facilitates quick, field‑friendly installation and reliable strain relief. Industry‑specific benefits include improved wash-down resilience, compatibility with standard Souriau accessories, and lower total cost of ownership through reduced maintenance intervals. This connector is well suited for harsh environments in industrial automation, robotics, packaging, and field service equipment, delivering predictable results even under temperature extremes (-40 °C to 105 °C).
Get a Quick Quote for a Eaton UTS6JC1419S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1419S?
Enquire Now
FAQs
For installation, ensure a clean mating interface, align the plug with the corresponding receptacle, and engage the 1/3 bayonet coupling with a smooth twist until the latch seats. Use the Sealing Gland backshell with cable diameter between 5 and 14 mm, and terminate with crimp contacts designed for 19 positions. Verify IP68 sealing after installation and test continuity to confirm signal integrity in your automation network.
The connector is rated for 5 A per IEC/UL standards and withstands up to 250 V (CSA/UL) with a test voltage of 250 V CSA and 250 V UL, ensuring safe operation within typical control circuits. It uses crimp contact delivery for reliable vibration resistance and supports 19 circuits in a compact plug, making it suitable for servo, sensor, and PLC wiring in automated lines.
Yes. The IP68/IP69K sealing, UV resistance, and chemical tolerance (including mineral oil and gasoline resistance) make it ideal for high‑pressure washdown and outdoor installations. The 71.5 mm length and backshell sealing gland provide robust protection against moisture ingress while maintaining ease of maintenance and replacement in demanding facilities.
The UTS6JC1419S complies with CSA-C22.2 No.182.3, UL 1977, and IEC 61984, among others. This ensures compatibility with safety and performance expectations in North American and international automation systems, simplifies supplier qualification, and supports regulatory compliance for equipment used in certified control panels and industrial machinery.
With a mating cycle rating of 250 and a rugged IP68/IP69K seal, the connector offers low maintenance and extended service life in harsh environments. Its 19‑way crimp contacts provide reliable, vibration‑tolerant connectivity, reducing downtime and replacement costs. Field technicians benefit from straightforward installation, quick diagnostics, and compatibility with existing Souriau accessory ecosystems for scalable automation projects.
