Eaton UTS6JC1419SX Plug - IP68/69K Waterproof
Part Number: UTS6JC1419SX
Quick Summary
Eaton UTS6JC1419SX plug is a 19‑position plastic waterproof connector designed for harsh industrial environments and mobile equipment. Users often struggle with water ingress, debris, and costly downtime when wiring on rugged machinery; this solution provides robust sealing, reliable mating, and easy integration. It meets IP68/IP69K sealing standards along with established electrical safety compliance, such as IEC 61984, UL 1977, and CSA-C22.2 No.182.3, ensuring dependable performance in demanding applications. By combining a sealing gland backshell, straight plug configuration, and a 1/3 bayonet coupling, this connector supports streamlined installation, reduced maintenance, and longer service life in automation panels, robotics, and heavy equipment.
Product Information
Extended Description

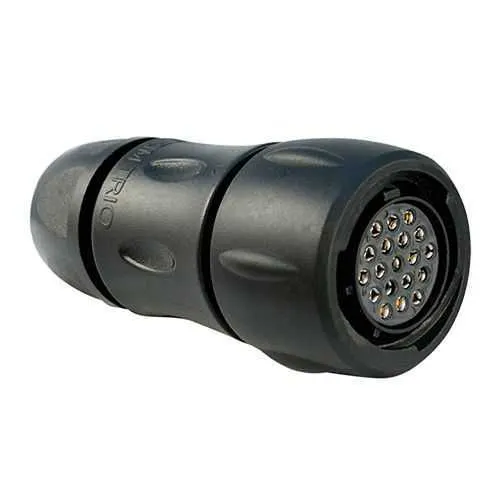

UTS6JC1419SX Eaton: Plastic plug, with cable gland backshell, for 19 female contacts, IP68/69K, keying X; UTS6JC1419SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1419SX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A IEC 5 A UL
Environmental conditions
REACH RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath
Test current
5 A UL 4 A CSA 5 A IEC
Test voltage
250 V CSA 32 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature → Business Impact → Application: The 19‑cavity insert enables dense wiring in a compact shell, reducing harness complexity and freeing panel space, which lowers installation time and cost in machine builds and robotics systems. Application: industrial automation harnesses and control panels. Feature → Business Impact → Application: IP68/IP69K sealing provides reliable water and dust protection, decreasing failure rates in outdoor equipment and marine environments, delivering uptime gains and lower warranty costs. Application: outdoor conveyors and agricultural machinery. Feature → Business Impact → Application: 1/3 Bayonet coupling allows quick mating and disconnection, accelerating maintenance cycles and minimizing downtime in field service. Application: mobile equipment and fleet installations. Feature → Business Impact → Application: Backshell with Sealing Gland backshell ensures cable integrity over a wide diameter range (5–14 mm), reducing installation rework and improving cable strain relief in rugged environments. Application: industrial robots and processing lines. Feature → Business Impact → Application: 71.5 mm length, 34.4 mm height, 34.6 mm width; compact footprint simplifies panel layout and enables easier cable routing in compact control cabinets. Application: compact automation panels and control enclosures. Feature → Business Impact → Application: 5 A electrical rating and 250 mating cycles provide predictable performance and longer lifecycle ROI, especially in high-cycle applications like conveyors and automated machines. Application: repetitive mating scenarios in harsh environments. Feature → Business Impact → Application: Polyamide insert and durable plastic shell resist aging and chemical exposure, reducing replacement frequency and maintenance costs. Application: chemical plants and offshore equipment. Feature → Business Impact → Application: Straight backshell and X connector orientation streamline assembly workflows and field wiring. Application: vehicle and machinery dashboards, remote control stations.
