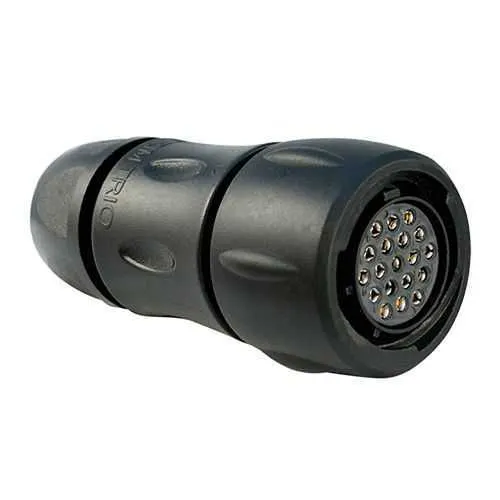

Eaton UTS6JC1419SY Waterproof 19-contact Connector IP68/69K
Part Number: UTS6JC1419SY
Quick Summary
Eaton UTS6JC1419SY is a waterproof 19‑way connector designed for rugged outdoor and industrial applications. Operators struggle with ingress, cable strain, and maintenance in wet or oily environments. Its IP68 sealing and compliance to IEC 61984, UL 1977, and CSA-C22.2 No.182.3 support safe, field-ready performance. In industrial automation and mobile machinery, it offers dependable connectivity that reduces downtime, speeds harness installations, and lowers lifecycle costs through robust materials and proven sealing.
Product Information
Extended Description
UTS6JC1419SY Eaton: Plastic plug, with cable gland backshell, for 19 female contacts, IP68/69K, keying Y; UTS6JC1419SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1419SY
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A UL 5 A IEC
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against basic bath Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
4 A CSA 5 A UL 5 A IEC
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
The UTS6JC1419SY features IP68/IP69K sealing with 19 positions, delivering a barrier against water, dust and oil. This reduces field failures and warranty costs while supporting compact, multi-signal harnessing for outdoor machinery and washdown environments. The backshell gland and straight plug with a 1/3 bayonet coupling simplify installation and maintenance, ensuring quick, splash-proof field connections. A polyamide insert in a plastic shell keeps the unit lightweight at 39.4 g with overall dimensions of 71.5 mm length, 34.4 mm height, and 34.6 mm width, enabling use in tight spaces. Rated for up to 5 A and tested at 5 A UL/IEC (250 V UL/CSA, 32 V IEC), it protects power and signal integrity across standard industrial circuits. The design supports up to 250 mating cycles and operates from -40 °C to 105 °C, making it suitable for harsh environments. Its UV resistance, oil and acid resistance, and 500 h salt spray resistance reassure long-term reliability in challenging settings. The solution aligns with RoHS and REACH, and carries UL94 V0 flame rating for material safety, while its Y connector orientation and 19‑way layout provide scalable, rugged connectivity for automation installations and mobile equipment.
Get a Quick Quote for a Eaton UTS6JC1419SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1419SY?
Enquire Now
FAQs
Install with the sealing gland backshell to protect the cable entry, crimp the 19 contacts for the signal or power lines, and mate using the 1/3 bayonet coupling in the Y orientation. Ensure cable diameter falls within 5 to 14 mm and verify a straight plug configuration for easy assembly and reliable sealing in washdown environments.
The connector is rated up to 5 A (UL and IEC) with 5 A test current, and supports up to 250 V (UL/CSA) or 32 V (IEC) depending on the contact type. It operates from -40 °C to 105 °C, making it suitable for extreme industrial conditions and outdoor machinery where temperature swings are common.
Yes. It features IP68 sealing with IP69K capabilities in harsh conditions, plus UV resistance, oil and acid resistance, and 500 h salt spray endurance. This makes it ideal for outdoor automation, construction equipment, and washdown-heavy industries where reliability under moisture and contamination is critical.
The UTS6JC1419SY complies with IEC 61984 for connectors, UL 1977 for interconnection components, and CSA-C22.2 No.182.3. It also carries RoHS and REACH compliance and UL94 V0 flame rating for the materials, supporting safe integration into regulated industrial environments.
The connector supports up to 250 mating cycles, which aligns with typical maintenance intervals in demanding industrial settings. Its sealing gland backshell plus robust materials minimize ingress-related wear, reducing downtime and replacement costs. For mobile assets or equipment subject to frequent couplings, this translates to predictable maintenance budgets and higher uptime.
