Eaton UTS6JC147P Connector - IP68/69K Sealing
Part Number: UTS6JC147P
Quick Summary
Eaton UTS6JC147P connector provides a waterproof IP68/69K plug solution for rugged industrial machinery and outdoor systems. Engineers often struggle with moisture ingress, cable strain, and unexpected downtime in exposed environments. With IEC 61984, UL 1977, and CSA-C22.2 compliance, IP68 protection and rugged performance, it fits stringent industrial specs. As a plug‑and‑play solution for harsh settings, it supports 7‑pin configurations and 1/3 bayonet coupling for quick, reliable installs, while integrating with polyamide housings and crimp contacts. This combination delivers robust moisture sealing, vibration resistance, and long service life in automotive, agricultural, and industrial automation applications. Choosing a certified connector also simplifies procurement and maintenance, reducing spare part variety while ensuring compatibility with Eaton Souriau UTS accessories.
Product Information
Extended Description

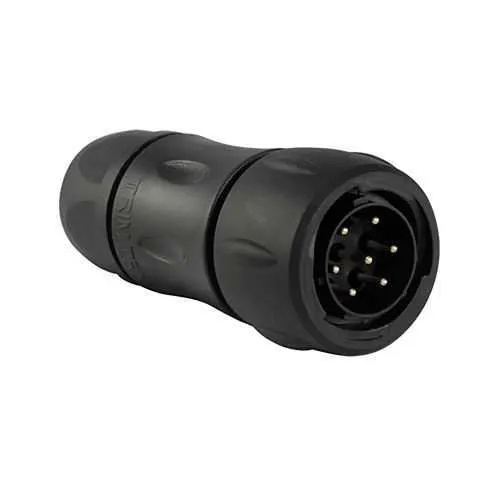

UTS6JC147P Eaton: Plastic plug, with cable gland backshell, for 7 male contacts, IP68/69K; UTS6JC147P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC147P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
40.7 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
RoHS REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against oil Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A UL 16 A IEC 7 A CSA
Test voltage
500 V CSA 300 V IEC 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
The UTS6JC147P uses IP68/IP69K sealing to protect electrical contacts from water, dust, and oil ingress, delivering a direct business impact: reduced downtime and longer service life for equipment operating in harsh environments. In practical terms, this means fewer field failures on outdoor gear, mining, or agricultural machinery, and easier compliance with maintenance schedules during IPC and safety audits. The 7‑pole, crimp contact arrangement with a straight plug and 1/3 bayonet coupling enables fast mating and secure retention, which translates to quicker installation and less rework on production lines. This connector is compatible with a polyamide shell and a sealing gland backshell, supporting cable diameters from 5 to 14 mm and enabling flexible cable management for a variety of installations. Operators also benefit from a documented 250 mating cycles, which contributes to predictable lifecycle planning and lower spare-part stock. The rated 10 A UL and 16 A IEC current carrying capability supports common automation loads, while test voltage allowances of up to 500 V UL/CSA ensure safety margins for motor and control circuits. Its operating temperature range of -40 °C to 105 °C covers extreme environments, from cold outdoor enclosures to elevated heat in control panels, and its environmental resistance adds resilience against oil, mineral oil, and UV exposure. The combination of RoHS and REACH compliance with fire and smoke ratings further reduces risk for regulated industries and supports sustainable design. Installation advantage is reinforced by backshell features such as the sealing gland and straight backshell angle, which simplify routing and protect seals during assembly. The UTS series has a compact shell size (14) with a 7‑position layout, enabling 7 cavities in a small footprint and reducing panel footprint in equipment design. In practice, this means engineers can consolidate connectors without compromising performance, improving BOM accuracy and procurement efficiency.
