Eaton UTS6JC147PSCR Plug - IP68/69K Waterproof
Part Number: UTS6JC147PSCR
Quick Summary
Eaton UTS6JC147PSCR is a plastic waterproof IP68/69K connector for 7-pin sensor/actuator harnesses in rugged equipment. Users often contend with moisture ingress, downtime, and seal failures in tough environments, making reliable sealing critical. Compliant with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 (and RoHS exemption 6.c), this connector supports safe and regulated operation. Designed as part of the Souriau UTS series, it combines IP68/IP69K protection with a 7-position layout and 1/3 bayonet coupling to shorten installation time and improve uptime for automation, robotics, and outdoor equipment.
Product Information
Extended Description

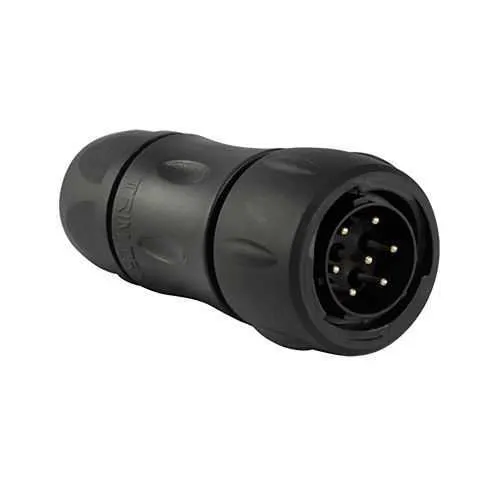

UTS6JC147PSCR Eaton: Plastic plug, with cable gland backshell, for 7 male screw contacts, IP68/69K; UTS6JC147PSCR
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC147PSCR
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
40.7 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 16 A IEC
Fitted with:
Last mate first break capability(optional) Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil
Test current
7 A CSA 10 A UL 16 A IEC
Test voltage
500 V UL 300 V IEC 500 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Screw
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature: IP68/IP69K rating with Sealing Gland backshell. Business Impact: Ensures long-term moisture and dust exclusion, reducing field failures and maintenance costs. Application: Outdoor automation panels and wet environments where ingress protection is critical. Feature: 7-position layout with Gold-plated screw contacts. Business Impact: Reliable electrical connection with corrosion resistance and stable performance under vibration. Application: 7-cavity sensor/actuator harnesses in robotic cells and process lines. Feature: 1/3 Bayonet coupling and straight plug. Business Impact: Faster, tool-free mating and unmating, lowering installation time and repair downtime. Application: High-volume production lines and portable equipment that require quick field servicing. Feature: Cable diameter range 5–14 mm with backshell gland. Business Impact: Flexible cabling options reduce need for custom harnesses and simplify field changes. Application: Variable wiring in machinery with mixed cable diameters. Feature: Operating temperature -40 to 105 °C and 250 mating cycles. Business Impact: Broad temperature tolerance and durable lifecycle, lowering replacement and downtime risk. Application: Industrial, automotive, and outdoor equipment subjected to wide thermal swings and repeated connect/disconnect cycles. Feature: 7 gold-plated contacts, current rating 10 A UL / 16 A IEC. Business Impact: High-quality contacts deliver consistent conductivity, supporting uptime and precision in control systems. Application: PLC I/O and field signal wiring in demanding environments. Feature: UL 1977, IEC 61984, CSA-C22.2 No.182.3 compliance (RoHS exemption 6.c). Business Impact: Regulatory alignment reduces certification delays and ensures global applicability. Application: Medical-adjacent or regulated industrial environments where standards traceability matters.
