Eaton UTS6JC147S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC147S
Quick Summary
Eaton UTS6JC147S is a plastic waterproof IP68/69K connector designed for rugged outdoor and industrial wiring. In demanding environments, moisture ingress, cable strain, and improper mating can lead to downtime and costly maintenance. This family aligns with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 compliances and features a UL94 V0 flame rating, backed by IP68/IP69K sealing for tough service. By combining robust sealing with a compact 7-cavity layout, it delivers reliable performance, faster installation, and reduced lifecycle costs for industrial apps and automation networks.
Product Information
Extended Description

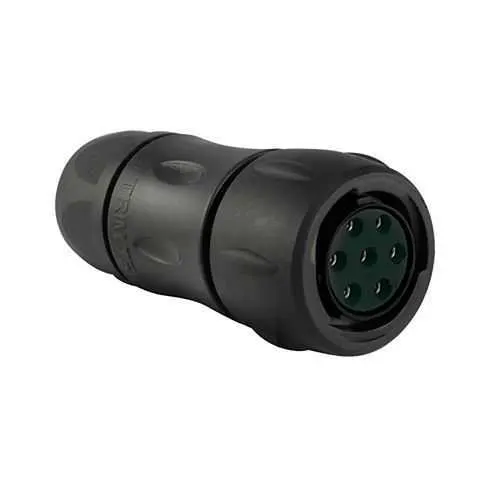

UTS6JC147S Eaton: Plastic plug, with cable gland backshell, for 7 female contacts, IP68/69K; UTS6JC147S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC147S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
40.9 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 10 A UL
Fitted with:
First mate last break capability Last mate first break capability(optional) Layout with ground cavity
Environmental conditions
Fire & Smoke REACH RoHS Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment
Test current
7 A CSA 16 A IEC 10 A UL
Test voltage
500 V CSA 300 V IEC 500 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
7
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature: IP68/69K waterproof sealing protects against dust, water, and immersion. Business Impact: Extends equipment uptime and reduces inspection frequency in harsh environments. Application: Outdoor machinery, wet processing lines, and mobile equipment benefit from dependable connections. Feature: 7-position crimp contacts with 1/3 bayonet coupling provides secure, quick mating. Business Impact: Speeds assembly and minimizes misalignment during field installs. Application: Control panels and machine harnesses in manufacturing lines gain faster assembly and lower labor costs. Feature: Cable diameter range 5 to 14 mm supports multiple cable types with a single connector family. Business Impact: Reduces spares inventory and simplifies design choices. Application: Power and signal harnesses for automated systems and packaging equipment. Feature: Operating temperature from -40 °C to 105 °C and UV/oil/acid resistance. Business Impact: Maintains performance in extreme climates and demanding industrial processes. Application: Heavy industry, farming equipment, and outdoor enclosures. Feature: 250 mating cycles and backshell sealing gland for durable, field-friendly installation. Business Impact: Improves total cost of ownership through longer service life and fewer replacements. Application: Frequent maintenance environments and high-cycle automation systems. Feature: 7-contact, straight plug with ground cavity layout and crimp contact type. Business Impact: Consistent electrical performance and easy integration with existing Souriau UTS series components. Application: System integrators deploying modular I/O and fieldbus interfaces in complex automation architectures.
Get a Quick Quote for a Eaton UTS6JC147S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC147S?
Enquire Now
FAQs
To install, verify your cable diameter falls within 5 to 14 mm, attach the sealing gland backshell, align the 7 female contacts with the mating connector, and engage the 1/3 bayonet coupling with a full twist to lock. Ensure proper orientation (N) and confirm the IP68 seal before powering the system. The connector supports 250 mating cycles for durable field use.
The UTS6JC147S supports 16 A IEC or 10 A UL current ratings, with a test current of 7 A CSA, and test voltages of 500 V CSA / 300 V IEC / 500 V UL. It uses crimp contacts, a 7‑cavity layout, and a straight plug geometry suitable for 14 shell size and a 5–14 mm cable range.
Yes. It has an IP68/IP69K rating for dust and waterproof sealing, UV resistance, and vibration tolerance per IEC 60512-4 across 10 to 2000 Hz. The design also withstands mineral oil and certain chemical exposures, making it well-suited for outdoor machinery, agricultural equipment, and industrial automation in harsh settings.
This connector uses the standard Souriau UTS series footprint with a ground cavity layout and 7-position configuration. It features a straight plug, 1/3 bayonet coupling, and a sealing gland backshell, enabling straightforward mating with compatible UTS receptacles and ease of field upgrades or expansions in modular automation systems.
With 250 mating cycles and IP68/69K sealing, the UTS6JC147S reduces downtime and maintenance costs in demanding applications. Its wide operating temperature range, UV resistance, and robust chemical tolerance lower replacement rates, while its compatibility with existing Souriau UTS components simplifies spares management and accelerates deployment across automation projects.
