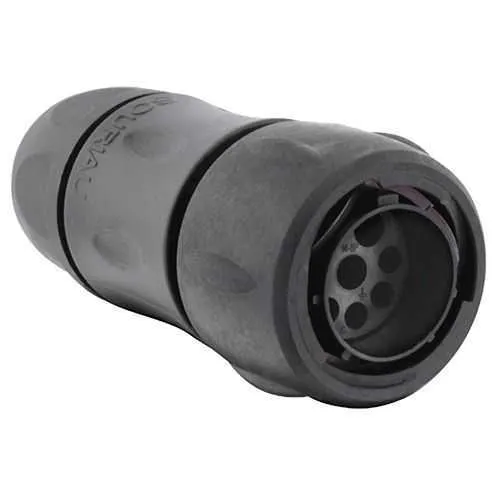

Eaton UTS6JC148P Plastic Plug - IP68/69K Waterproof
Part Number: UTS6JC148P
Quick Summary
Eaton UTS6JC148P is a plastic waterproof IP68/69k connector for rugged industrial wiring. Field installations often struggle with water ingress, dust, and vibration that compromise seals and contacts. Certifications include UL 1977, CSA-C22.2 No.182.3, and IEC 61984, supporting safety and interoperability in global equipment. With eight contacts and robust sealing, it helps reduce downtime and maintenance costs in automation and machinery applications, while offering reliable performance across harsh environments. This solution also aligns with industry standards for RoHS, REACH, and UV resistance, delivering business value through durable, easy-to-install connectivity.
Product Information
Extended Description
UTS6JC148P Eaton: Plastic plug, with cable gland backshell, for 8 male contacts, IP68/69K; UTS6JC148P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC148P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
17 A IEC 25 A UL
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
REACH Flammability rating UL94 V0 Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke RoHS
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against oil
Test current
17 A CSA 17 A IEC 25 A UL
Test voltage
230 V IEC 230 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #12
4
Number of cavity #16
4
Salt spray
500 hour
IP68/69K sealing and a sealing gland backshell protect eight-pin crimp contacts from moisture, dust, and environmental contamination, reducing field failure rates and warranty claims. Business impact: lower downtime and service costs; application: outdoor conveyors and wash-down environments. The 71.5 mm length and 34.6 mm width keep the footprint compact for tight dashboards and control panels, enabling easier panel integration and standardized installations across machines. The polyamide insert and plastic shell yield lightweight, corrosion-resistant performance, while maintaining rugged durability necessary for heavy-duty automation.
Get a Quick Quote for a Eaton UTS6JC148P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC148P?
Enquire Now
FAQs
The UTS6JC148P uses crimp contact delivery for an 8-pin configuration, with a cable diameter range of 5 to 14 mm. It features a straight plug and a 1/3 bayonet coupling, enabling quick, secure mating. This combination supports reliable field terminations and straightforward replacement without special tooling, reducing installation time and risk of misalignment.
Electrical performance includes a current rating of 17 A IEC and 25 A UL, with voltage ratings of 230 V IEC/CSA and 250 V UL. The connector is rated for up to 250 mating cycles, ensuring durable performance in repetitive connect/disconnect scenarios common in manufacturing lines and mobile equipment.
Yes. The UTS6JC148P is IP68 rated with UV resistance and a sealing gland backshell, designed to resist water ingress, dust, and environmental exposure. It also withstands salt spray tests for up to 500 hours and supports wide operating temperatures from -40 °C to 105 °C, making it suitable for outdoor and wash-down applications.
This connector meets UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards, ensuring electrical safety, interconnect compatibility across regions, and a proven level of performance for medical, industrial, and automation equipment. Compliance reduces regulatory risk and simplifies global procurement for OEMs deploying cross-border machinery.
With 250 mating cycles and a robust IP68/69K seal, the UTS6JC148P minimizes maintenance downtime and replacement frequency. Its lightweight polyamide insert and corrosion-resistant shell lower wear and rework costs, while easy installation shortens project timelines. Together, these factors contribute to a lower total cost of ownership in demanding automation environments.
