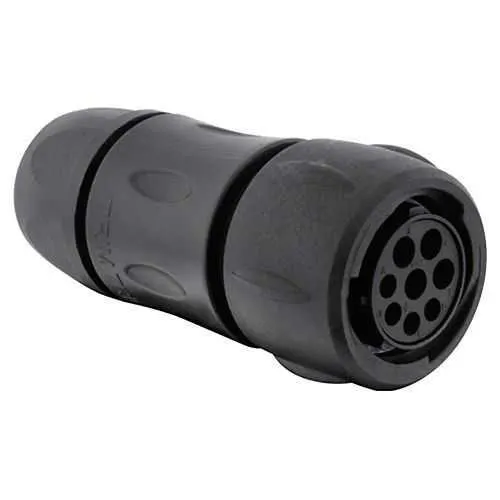

Eaton UTS6JC148S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC148S
Quick Summary
Eaton UTS6JC148S plastic waterproof connector provides rugged, IP68/69K-sealed performance for outdoor automation equipment. Operators struggle with moisture ingress and vibration that lead to intermittent signals and downtime. The UTS6JC148S addresses these challenges with a sealing gland backshell and a straight plug design, ensuring reliable mating in harsh environments. It carries UL 1977, CSA-C22.2 No.182.3, and IEC 61984 certifications, supporting safe, compliant operation, while UV resistance and UL94 V0 flammability add long-term reliability. With an 8-contact configuration and a compact 71.5 mm length, it delivers robust connectivity and reduces installation complexity and maintenance costs for industrial systems and mobile equipment alike.
Product Information
Extended Description
UTS6JC148S Eaton: Plastic plug, with cable gland backshell, for 8 female contacts, IP68/69K; UTS6JC148S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC148S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
41.1 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
25 A UL 17 A IEC
Fitted with:
Last mate first break capability(optional) First mate last break capability(optional)
Environmental conditions
Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Fire & Smoke REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against gasoline
Test current
17 A IEC 25 A UL 17 A CSA
Test voltage
250 V UL 230 V CSA 230 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #12
4
Number of cavity #16
4
Salt spray
500 hour
Feature: IP68/IP69K sealing with sealing gland backshell → Business Impact: Protects against water, dust and immersion, extending component life and reducing field failures; Application: Outdoor machinery, wet environments, and mobile equipment where ingress protection is critical. Feature: 8 contact sockets with crimp contact type → Business Impact: Enables compact high-density wiring while maintaining reliable signal and power transfer; Application: Motor starters, sensors, and control networks in tight control panels. Feature: Current rating of 25 A UL / 17 A IEC → Business Impact: Supports robust load profiles without overheating, lowering wiring and cooling requirements; Application: Industrial automation and process equipment with moderate to high power needs. Feature: Cable diameter range 5–14 mm → Business Impact: Flexible harness compatibility reduces rework and stock variety; Application: Field-installable assemblies with diverse cable jackets. Feature: Mating cycles up to 250 → Business Impact: Predictable lifecycle performance lowers maintenance downtime and replacement costs; Application: Frequent disconnect/reconnect cycles in conveyors and mobile machinery. Feature: Backshell: Sealing Gland, Backshell angle Straight, Coupling: 1/3 Bayonet → Business Impact: Easy, secure mating with quick connection, improving install times; Application: Assembly lines and field deployments where speed matters. Feature: Insert material Polyamide; Shell size 14; Operating temperature −40 °C to 105 °C → Business Impact: Weather-resistant, high-temperature tolerance enables use in varied climates; Application: Harsh environments, automotive, and outdoor equipment. Feature: Compliance and ratings: UL 1977, CSA-C22.2 No.182.3, IEC 61984; UL94 V0; RoHS/REACH → Business Impact: Regulatory readiness and reduced risk for global deployments; Application: Design-ins for international projects and safety-critical systems.
Get a Quick Quote for a Eaton UTS6JC148S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC148S?
Enquire Now
FAQs
The UTS6JC148S is rated for up to 250 mating cycles, providing predictable lifecycle performance in assemblies with frequent connection and disconnection. This helps reduce downtime and maintenance costs in automated lines and serviceable equipment, while maintaining reliable power and signal integrity between mating halves.
Yes. The connector achieves IP68 sealing with a sealing gland backshell, and it is designed to withstand immersion and challenging outdoor conditions. It also features UV resistance and UL94 V0 flammability, making it a dependable choice for weather-exposed automation, outdoor machinery, and mobile equipment.
The plug accommodates cable diameters from 5 mm up to 14 mm, enabling flexible harness designs and reducing the need for multiple connector variants. This range supports common industrial cables used for power and signal in automated systems.
Install with the straight backplug orientation and sealing gland backshell. The coupling is 1/3 bayonet, and the assembly uses crimp contacts for eight sockets (female). With a shell size of 14 and a 71.5 mm length, ensure proper clearance and secure mating to maintain IP rating and environmental sealing.
The UTS6JC148S complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984. It also carries UL94 V0 flammability, and RoHS/REACH compliance, supporting regulatory readiness for global deployments in automotive, industrial, and process environments.
