Eaton UTS6JC1492S Plastic Waterproof IP68/69K Connector - IP68/69K Rating
Part Number: UTS6JC1492S
Quick Summary
The Eaton Souriau UTS series plastic waterproof IP68/69k connector provides reliable power and signal coupling in harsh industrial environments. Operators often struggle with moisture ingress, field repairs, and complex cable management in outdoor or washdown areas. It meets IP68/IP69K protection, UL 1977, IEC 61984, and CSA-C22.2 No.182.3 compliance, delivering confidence for safety-critical automation deployments. By combining rugged durability with easy cable gland backshell installation and 12‑way crimp contacts, this connector supports seamless automation integration, longer service life, and reduced downtime in demanding applications. For engineering teams seeking robust, compliant connectivity, it translates into lower maintenance costs and faster field upgrades in automation and outdoor equipment setups.
Product Information
Extended Description

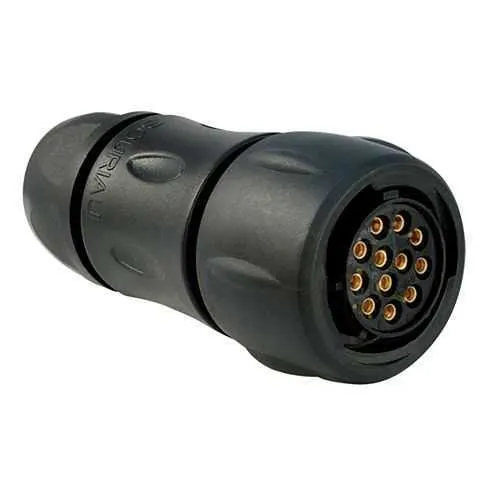

UTS6JC1492S Eaton: Plastic plug, with cable gland backshell, for 12 female contacts, IP68/69K; UTS6JC1492S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC1492S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
39.6 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Environmental conditions
REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
600 V UL 600 V CSA 63 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
92
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature → Business Impact → Application: The connector offers 12 female contacts in a straight plug with 1/3 bayonet coupling, enabling rapid, tool-free mating and reliable high-vibration operation; this reduces installation time and field failure rates in mobile machinery and robotics. The IP68 rating and sealing gland backshell minimize water ingress and corrosion risks, boosting uptime for outdoor conveyors and washdown environments while cutting warranty costs. The polyamide insert and plastic shell provide durable insulation and chemical resistance, improving long-term performance in harsh oils and UV exposure encountered in construction and agricultural equipment. With operating temperatures from -40 °C to 105 °C and a mating cycle specification of 250, maintenance windows are simplified and routine replacements become predictable, ensuring compliance in regulated facilities. The 12‑contact arrangement supports complex sensing and power delivery needs in industrial automation panels and control cabinets.
Get a Quick Quote for a Eaton UTS6JC1492S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC1492S?
Enquire Now
FAQs
For installation, use the straight plug with the sealing gland backshell to ensure IP68/69K protection. The 12 crimp contacts require compatible crimp tooling and a 5–14 mm cable diameter range. The 1/3 bayonet coupling provides quick yet secure mating, while the backshell and gland sealant protect against moisture ingress in washdown and outdoor environments. Ensure mating cycles are within the 250-cycle specification to maintain connector integrity.
Yes. The UTS6JC1492S complies with IEC 61984 and UL 1977 standards, along with CSA-C22.2 No.182.3, ensuring regulatory alignment for control panels, industrial automation equipment, and safety-critical machinery. This makes it suitable for equipment destined for North American and international markets, reducing certification hurdles during integration.
Ideal for rugged outdoor automation, mobile machinery, and energetic robotics, the UTS6JC1492S supports harsh environments thanks to its IP68/69K protection, 12‑position contact layout, and sealing gland backshell. It is well-suited for conveyor systems, agricultural machinery, construction equipment, and outdoor sensors requiring reliable, sealed power and signal transmission with minimal maintenance.
This connector offers IP68 protection, UL 1977, IEC 61984, and CSA-C22.2 No.182.3 compliance, which are critical for ensuring long-term reliability in damp or dusty environments. The protection class reduces ingress of water and dust, while the safety certifications support compliance during audits and maintenance, lowering risk in regulated industries.
The 12‑contact, IP68/69K sealed design minimizes field faults due to moisture and contamination, reducing repair time and spare-part usage. With a mating cycle of 250 and a wide operating temperature range, the connector supports longer service intervals and fewer replacements in harsh environments, delivering lower lifecycle costs and improved equipment availability.
