Eaton UTS6JC14E12P Connector - IP68/69K Waterproof
Part Number: UTS6JC14E12P
Quick Summary
Eaton UTS6JC14E12P connector provides rugged IP68/69K waterproof connectivity for harsh industrial environments. Engineers often struggle with ingress, cable strain, and unreliable mating in wash-down or outdoor settings. This design meets critical standards such as IEC 61984, CSA-C22.2 No.182.3, UL 1977, and RoHS exemptions, delivering reliable performance in demanding applications. With 12 contact positions and a 14 shell size, plus a sealing gland backshell, it enables compact, field-ready connections that reduce downtime, simplify maintenance, and improve overall equipment uptime for automated systems and mobile machinery.
Product Information
Extended Description

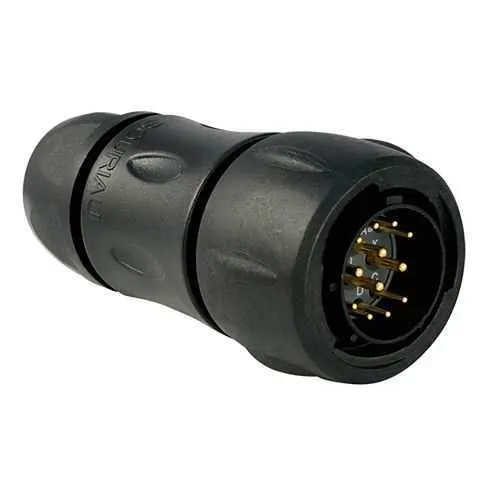

UTS6JC14E12P Eaton: Plastic plug, with cable gland backshell, with 12 male solder contacts, IP68/69K in unmated conditions; UTS6JC14E12P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E12P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
ROHS exemption 6.c IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
4 A IEC 4.5 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath Resistant against basic bath Resistant against gasoline Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A IEC 4.5 A CSA 4.5 A UL
Test voltage
250 V CSA 50 V IEC 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
4
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68/69K rated plastic housing and sealing gland backshell. Business Impact: With superior ingress protection and chemical resistance, it minimizes field failures and reduces maintenance cycles in wash-down and outdoor environments. Application: Ideal for automation panels, agricultural equipment, and outdoor machinery where reliability under harsh conditions is non-negotiable. Feature: 12-pin male solder contacts with gold plating. Business Impact: Delivers low contact resistance, corrosion resistance, and long service life, supporting stable signal and power transmission in tight spaces. Application: Control, sensing, and low-current power circuits in compact assemblies. Feature: 1/3 bayonet coupling with straight plug. Business Impact: Fast, tool-free mating and reliable retention even in vibration-prone installations, reducing assembly time and operator fatigue. Application: Field repairs, rugged installations, and fleet maintenance in industrial plants. Feature: Operating temperature range from -40 °C to 105 °C. Business Impact: Maintains electrical performance across extreme climates, enabling year-round operation with fewer temperature-related faults. Application: Outdoor equipment, food & beverage processing lines, and outdoor automation. Feature: Cable diameter range 5–14 mm with neoprene insert. Business Impact: Flexible installation for a wide range of cable assemblies while maintaining a tight seal, lowering stocking complexity. Application: Custom harnessing in machine enclosures and portable equipment. Feature: Compact shell size 14 with 71.5 mm length and 34.6 mm width. Business Impact: Saves panel space and weight, improving overall equipment efficiency and ease of integration in compact control cabinets. Application: Compact automation modules, robotics, and small-scale machinery. Feature: Mating cycles rated at 250. Business Impact: Predictable service life with repeatable mating performance, reducing replacement costs and downtime. Application: Frequent assembly/disassembly scenarios in maintenance cycles and modular systems.
