Eaton UTS6JC14E12PW Plastic Waterproof IP68/69k Connector
Part Number: UTS6JC14E12PW
Quick Summary
The Eaton UTS6JC14E12PW plastic waterproof IP68/69k connector delivers sealed, reliable connectivity for harsh industrial environments and outdoor installations. Engineers often struggle with moisture ingress, vibration, and frequent field maintenance; this plug helps mitigate those challenges with a robust sealing solution. It carries multiple certifications and standards that support compliant integration into diverse control systems, including UL 1977, IEC 61984, and CSA-C22.2 No. 182.3, alongside RoHS exemptions. By combining durability with straightforward installation, it reduces downtime and service costs while keeping critical signal and power paths secure. The design also aligns with common automation architectures, enabling smoother integration with Eaton Souriau UTS accessories, standard backshell options, and compatible 5–14 mm cable diameters.
Product Information
Extended Description

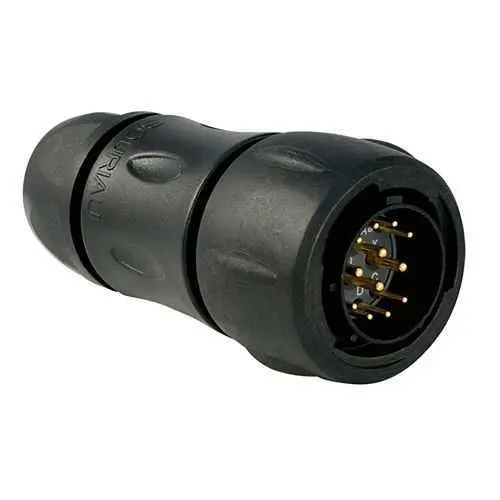

UTS6JC14E12PW Eaton: Plastic plug, with cable gland backshell, with 12 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E12PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E12PW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
4 A IEC 4.5 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against acid bath Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against gasoline
Test current
4.5 A UL 4.5 A CSA 4 A IEC
Test voltage
250 V CSA 250 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
4
Number of cavity #20
8
Salt spray
500 hour
Feature: 12-position layout with a straight plug and W orientation. Business Impact: Enables compact, streamlined wiring in control cabinets and machine panels while preserving space for other components. Application: Robotics, packaging lines, and automation panels where space is at a premium. Feature: 1/3 bayonet coupling and sealing gland backshell. Business Impact: Fast, tool-free mating with reliable ingress protection, reducing maintenance time during field installs. Application: Outdoor machinery and food-and-beverage processing lines where frequent coupling/uncoupling occurs. Feature: IP68 protection and operating temperature range -40 °C to 105 °C. Business Impact: Ensures operation in extreme temperatures and harsh washdown environments, lowering failure risk. Application: Outdoor conveyors, solar or wind applications, and harsh-environment machines. Feature: Gold-plated solder cup contacts, 12 contacts with layout of four #16 and eight #20 cavities. Business Impact: Superior corrosion resistance and consistent electrical contact for long service life, improving signal integrity. Application: Sensing networks and actuator control loops in harsh plants. Feature: Backshell type Sealing Gland with straight backshell angle. Business Impact: Strong environmental seal and easy routing of cables, reducing installation errors. Application: Panel assemblies and junctions in fabrications and machinery. Feature: Mating cycles rated at 250 with current ratings up to 4 A IEC / 4.5 A UL. Business Impact: Predictable lifecycle and reliable performance under repeated engagements, lowering lifetime replacement costs. Application: Reusable field connectors in automation lines and test benches.
