Eaton UTS6JC14E12PX Connector - IP68/69K Waterproof
Part Number: UTS6JC14E12PX
Quick Summary
The Eaton Souriau UTS6JC14E12PX is a plastic waterproof IP68/69K connector designed for challenging industrial environments and tight installations. Engineers often contend with moisture ingress, dust, and vibration that threaten reliability in control panels and mobile equipment. This device meets UL 1977, IEC 61984, and CSA-C22.2 standards while delivering IP68 protection, a 12-pin layout, and a robust 1/3 bayonet coupling. With a 4.5 A current rating and an operating range from -40 °C to 105 °C, it combines rugged performance with straightforward installation and maintenance, delivering long-term cost savings and higher system uptime in automated and remote environments.
Product Information
Extended Description

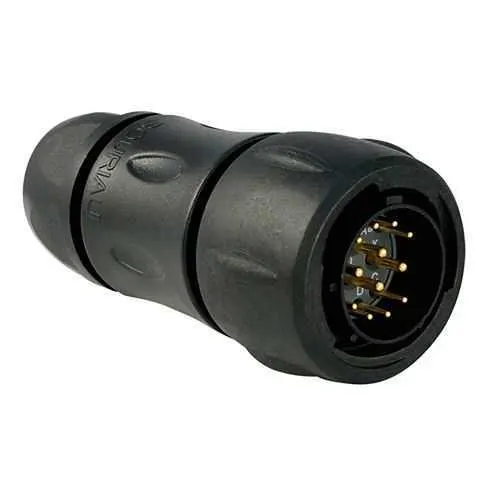

UTS6JC14E12PX Eaton: Plastic plug, with cable gland backshell, with 12 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E12PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E12PX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4.5 A UL 4 A IEC
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against acid bath Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4.5 A UL 4.5 A CSA 4 A IEC
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
4
Number of cavity #20
8
Salt spray
500 hour
IP68/IP69K sealing and a sealing gland backshell provide reliable ingress protection, reducing downtime and maintenance costs in washdown and outdoor environments. This translates to longer service intervals and lower repair frequency in food processing, water treatment, and outdoor automation applications. The 12-pin solder-cup contacts with gold plating offer high-reliability signal and power transfer, supporting sensors and actuators with minimal contact resistance and wear. The 1/3 bayonet coupling enables fast mating and secure retention even under vibration, improving field assembly time and reliability in assembly lines and mobile equipment. The straight plug orientation and X-keying simplify installation in dense harnesses and tight compartments, minimizing the risk of misconnection. Operating temperature from -40 to 105 °C ensures performance across automotive, industrial, and outdoor environments, while the backshell and neoprene insert provide added chemical and UV resistance for extended lifecycle. Compatibility with Souriau UTS-series components offers scalable solutions for varying current, voltage, and pin-count requirements without rework. The combination of IP protection, rugged mating cycles (250), and RoHS-compliant materials helps reduce lifecycle costs and support regulatory alignment across multiple regions.
