Eaton UTS6JC14E12S IP68 Waterproof Connector - 12-pin
Part Number: UTS6JC14E12S
Quick Summary
The Eaton UTS6JC14E12S IP68 waterproof connector delivers reliable panel-to-cable connections for harsh outdoor and industrial environments. Engineers often struggle with moisture ingress, dirt and vibration that jeopardize uptime during field installs or maintenance. This UTS series plugs meet IP68 protection and electrical safety standards, with UL 1977 and CSA-C22.2 No.182.3 certifications supporting regulatory compliance. Its neoprene insert and sealing gland backshell provide reliable moisture sealing, while 1/3 bayonet coupling speeds mating and reduces maintenance time. By combining a 12-circuit layout with gold-plated solder contacts and rugged plastics, it enables dependable automation connectivity in packaging, mobile equipment, and outdoor control panels.
Product Information
Extended Description

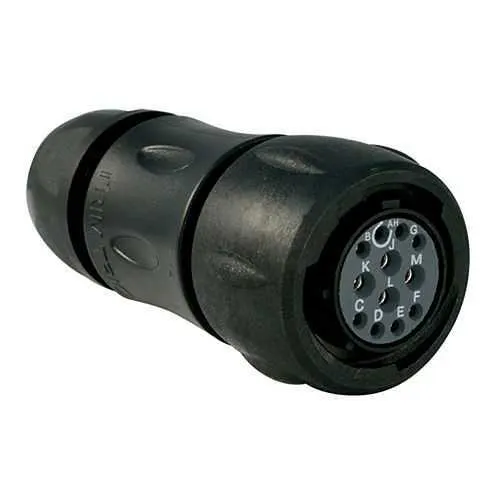

UTS6JC14E12S Eaton: Plastic plug, with cable gland backshell, with 12 female solder contacts, IP68/69K in unmated conditions; UTS6JC14E12S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E12S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c IEC 61984 (please contact us for more details)
Current rating
4 A IEC 4.5 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil
Test current
4.5 A UL 4 A IEC 4.5 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
4
Number of cavity #20
8
Salt spray
500 hour
IP68 protection and a sealing gland backshell deliver reliable moisture protection in exposed environments. The 1/3 bayonet coupling enables quick mating and secure retention even in dusty or oily conditions. The 12-position layout with gold-plated solder cups ensures consistent signal and power integrity across all contacts, reducing field failures and rework in high-vibration lines. This connector is rated for up to 4 A current and up to 250 V, supporting mixed loads typical in automation panels while keeping heat generation manageable. Operating temperature ranges from -40 to 105 °C, enabling use in automotive, outdoor, and harsh industrial settings without compromising performance. The plastic shell, Neoprene insert, and UV resistance contribute to long service life across 250 mating cycles, while the 71.5 mm length and 34.4 × 34.6 mm footprint simplify panel integration and wiring harness routing. Compatibility with a 5–14 mm cable diameter and a straight plug orientation improves install-time efficiency and retrofit feasibility for existing lines. The 12-contact arrangement, with 12 cavities split as four of #16 and eight of #20, supports scalable signal and power distribution across complex automation networks.
