Eaton UTS6JC14E12SW Waterproof Connector - IP68/69K
Part Number: UTS6JC14E12SW
Quick Summary
Eaton UTS6JC14E12SW is a plastic waterproof IP68/69K connector designed for rugged field wiring in harsh industrial environments. The design addresses sealing, vibration, and reliability challenges that technicians encounter when wiring motors, conveyors, and remote sensors. Certified to IEC 61984, UL 1977, and CSA-C22.2 No.182.3 with ROHS exemption 6.c, the plug also withstands extended outdoor exposure. As part of the Souriau UTS series, it supports fast assembly with a 1/3 bayonet coupling and 12-position contact layout, delivering value through faster deployments and lower maintenance. Its 12 female solder contacts and gold plating enhance signal integrity in demanding conditions, while a straight back and 5–14 mm cable diameter range fit compact installations in control cabinets and field enclosures.
Product Information
Extended Description

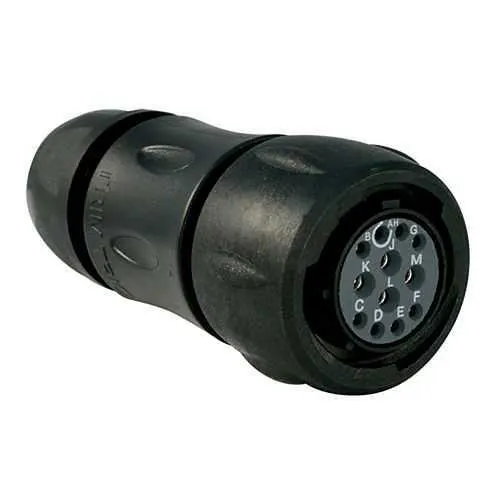

UTS6JC14E12SW Eaton: Plastic plug, with cable gland backshell, with 12 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E12SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E12SW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
4.5 A UL 4 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against gasoline Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
4.5 A CSA 4.5 A UL 4 A IEC
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
4
Number of cavity #20
8
Salt spray
500 hour
Feature: IP68/IP69K sealing and unmated integrity. Business Impact: Maximum protection against water, dust, and washdowns reduces field failures and service calls. Application: Outdoor equipment, washdown areas, and rugged automation cells. Feature: 12-position layout with gold-plated solder cups. Business Impact: Robust signal integrity and corrosion resistance for sensor and control wiring. Application: Complex machinery wiring and multi-point actuation in robotics and conveyors. Feature: 1/3 bayonet coupling with straight plug. Business Impact: Rapid, secure mating with repeatable performance, cutting installation time by minutes per connector. Application: High-volume panel and equipment builds where fast field terminations matter. Feature: Backshell with sealing gland and neoprene insert. Business Impact: Superior environmental sealing and strain relief, extending product life in harsh environments. Application: Harsh industrial floors, offshore or outdoor installations, and mobile machinery. Feature: Operating range -40 to 105 °C and 4.5 A current rating with 250 V voltage rating. Business Impact: Broad performance envelope supports diverse applications while ensuring compliance with safety standards. Application: Automation controllers, drives, and remote field sensors. Feature: 12 contacts with staggered cavities (#16: 4, #20: 8) and 250 mating cycles. Business Impact: High-density connections and long service life under vibration and frequent mating. Application: High-cycle automation and equipment with frequent connector engagement. Feature: Souriau UTS series compatibility and RoHS compliance. Business Impact: Streamlined sourcing and regulatory alignment across global projects. Application: Global manufacturing lines and multi-site deployments.
