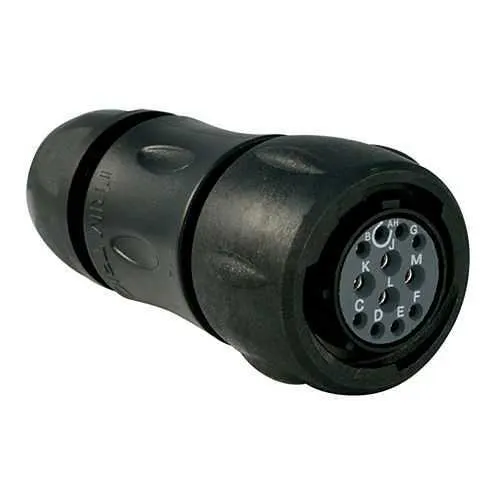

Eaton UTS6JC14E12SX Connector - IP68/69K Waterproof
Part Number: UTS6JC14E12SX
Quick Summary
Eaton UTS6JC14E12SX connector enables waterproof power and signal connections for rugged industrial automation applications. In harsh environments, ingress and downtime during maintenance threaten uptime and productivity. This plug meets IEC 61984, UL 1977, CSA-C22.2 No. 182.3, and ROHS exemption 6.c, with IP68 sealing that protects unmated connections. Its 12-position Souriau UTS layout, straight plug, and sealing gland support fast, reliable wiring in the field. Designed for outdoor and mobile equipment, it reduces mis-mating risk and replacement costs while enabling compliant, durable connections. The compact shell size and gold-plated solder contacts further enhance performance in space-constrained installations.
Product Information
Extended Description
UTS6JC14E12SX Eaton: Plastic plug, with cable gland backshell, with 12 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E12SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E12SX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
4.5 A UL 4 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath
Test current
4.5 A UL 4.5 A CSA 4 A IEC
Test voltage
250 V CSA 250 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Number of cavity #16
4
Number of cavity #20
8
Salt spray
500 hour
IP68/69K sealing plus a plastic shell deliver reliable ingress protection in unmated and mated states. The rugged design minimizes dust, water, and oil ingress, reducing field faults and maintenance costs in outdoor equipment and mobile machinery. This has a direct impact on equipment uptime and service intervals in packaging lines, agricultural machinery, or construction gear. The 12-position layout with gold-plated solder cup contacts ensures low contact resistance, long-term corrosion resistance, and consistent signal integrity. The result is improved drive accuracy for sensors and actuators, and safer power delivery in robotics cells and automated conveyors. The 1/3 bayonet coupling enables fast mating and unmating, reducing maintenance time and avoiding cross-threading or misalignment. This is ideal for panels and field repairs where quick, reliable connections matter. Backshell options include a sealing gland and a cable gland backshell, providing strain relief and protection against water ingress. The connector orientation X and straight plug configuration simplify installation in tight spaces. Operating from -40 °C to 105 °C with a 4.5 A rating (UL) / 4 A (IEC) and 250 mating cycles, this connector supports demanding industrial environments and long service life. Delivered as a complete plug with connector orientation X, 12 contacts, and gold plating, this Eaton Souriau UTS6 series solution delivers proven reliability, regulatory compliance, and cost-saving installation, reducing spare part variety and stock levels.
Get a Quick Quote for a Eaton UTS6JC14E12SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E12SX?
Enquire Now
FAQs
The UTS6JC14E12SX provides IP68 sealing with IP69K protection in unmated conditions, guarding against water and dust ingress even when the connector is disconnected. This makes it ideal for outdoor and mobile equipment where field servicing occurs without compromising protection.
It carries a 4.5 A rating per UL and 4 A per IEC, with a test current of 4.5 A CSA, and a 250 V rating. It uses 12 gold-plated solder cup contacts, delivering reliable, corrosion-resistant power and signal transfer in harsh environments.
The 1/3 bayonet coupling allows quick, tool-free mating and unmating, reducing maintenance time and the risk of cross-threading or misalignment. This is particularly valuable in panel installations and field repairs where access is constrained and downtime matters.
Yes. With IP68/IP69K protection, a temperature range of -40 to 105 °C, UV resistance, and a sealing gland backshell, it is well-suited for outdoor automation, conveyors, and mobile machinery, delivering reliable operation and long service life.
As part of the Souriau UTS series, the unit offers 250 mating cycles, a 12-pin layout, and a 14 shell size with X orientation. It complies with IEC 61984, UL 1977, and CSA standards, supporting long-term procurement across multiple projects and simplifying stock management.
