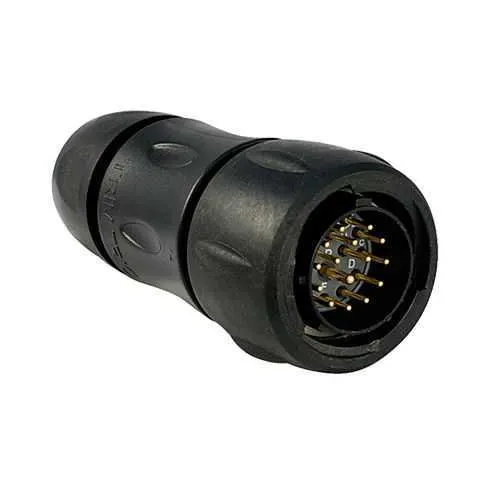

Eaton UTS6JC14E15P Plug - IP68/69K Waterproof Connector
Part Number: UTS6JC14E15P
Quick Summary
The Eaton UTS6JC14E15P plug provides a rugged waterproof IP68/69K connection for harsh industrial environments. Engineers often struggle with moisture ingress, vibration, and cabling constraints in outdoor or washdown facilities. Compliances include UL 1977, CSA-C22.2 No. 182.3, IEC 61984, plus RoHS exemption 6.c, reinforcing safety and regulatory alignment across regions. Its 15 gold-plated solder contacts and 1/3 bayonet coupling deliver reliable mating and straightforward installation, while compatibility with Souriau UTS housings helps reduce refurbishment costs and downtime in service-critical applications.
Product Information
Extended Description
UTS6JC14E15P Eaton: Plastic plug, with cable gland backshell, with 15 male solder contacts, IP68/69K in unmated conditions; UTS6JC14E15P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E15P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
43.8 g
Compliances
ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4 A IEC 12 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against gasoline Resistant against oil
Test current
12 A CSA 4 A IEC 12 A UL
Test voltage
600 V CSA 600 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
15
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
15
Number of cavity #16
1
Number of cavity #20
14
Salt spray
500 hour
Feature: IP68/IP69K protection with a sealing gland backshell. Business Impact: Exceptional ingress protection and moisture resistance minimize field failures and maintenance in wet or dusty environments. Application: Outdoor machinery, washdown-equipped packaging lines, and coastal installations benefit from extended service intervals. Feature: 15 gold-plated solder cup contacts. Business Impact: Low contact resistance and robust signal/power transfer improve automation reliability and minimize downtime. Application: Control panels, servo drives, and power distribution modules in industrial automation setups. Feature: 1/3 Bayonet coupling and straight plug design. Business Impact: Faster, secure mating with predictable alignment even in tight spaces reduces installation time and potential mis-mating. Application: Robotic cells and assembly lines where quick, repeatable connections are essential. Feature: Cable diameter range 5–14 mm with backshell sealing gland. Business Impact: Wide cable compatibility lowers part variety and field stuffing time, improving on-site efficiency. Application: Machines with mixed cable gauges across legacy and upgrade projects. Feature: Operating temperature -40 to 105 °C and UV/oil resistance. Business Impact: Temperature resilience and environmental durability ensure reliable performance across harsh climates and industrial fluids. Application: Outdoor enclosures, heavy equipment, and harsh production lines. Feature: 250 mating cycles and ROHS exemption 6.c compliance. Business Impact: Durable electrical interfaces reduce replacement cycles, while regulatory compliance supports global deployments. Application: Long-life automation components in global facilities with strict sourcing rules.
Get a Quick Quote for a Eaton UTS6JC14E15P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E15P?
Enquire Now
FAQs
The UTS6JC14E15P is designed as part of the Souriau UTS family, featuring a straight plug with 15 positions and a 1/3 bayonet coupling. It is compatible with Souriau UTS receptacles and backshell configurations that use a sealing gland, enabling straightforward upgrades while maintaining the same mounting footprint and mating orientation.
This 15-contact plug supports 4 A at IEC standards and 12 A at UL standards, with a maximum voltage rating of 600 V across the contacts. Contacts are gold-plated solder cups, suitable for robust power and signal transfer in automation panels and control gear.
Yes. It carries IP68/69K protection and a backshell sealing gland, along with UV resistance and oil/mineral-soil resistance. It is designed for harsh environments, including outdoor locations and washdown facilities, helping maintain performance under challenging exposure conditions.
The product aligns with UL 1977, CSA-C22.2 No. 182.3, and IEC 61984 standards, with RoHS exemption 6.c. This combination supports cross-regional compliance for global deployments and safer, certified integration into automated systems.
The combination of 1/3 bayonet coupling, straight plug orientation, and backshell gland sealing simplifies installation and field maintenance. With 250 mating cycles and a wide cable range (5–14 mm), technicians can achieve quick, reliable re-mating, reducing downtime during upgrades or servicing.
