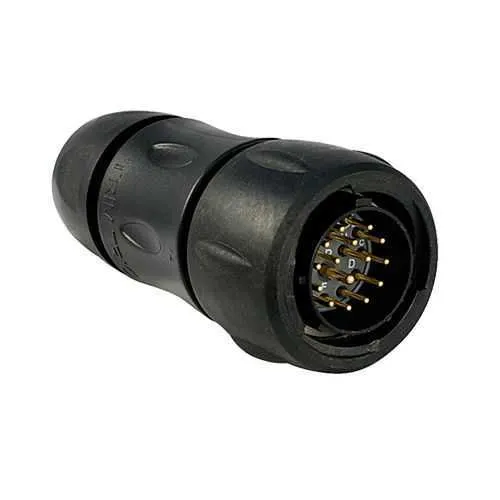

Eaton UTS6JC14E15PX Connector - IP68/69K
Part Number: UTS6JC14E15PX
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector provides rugged interconnects for harsh industrial equipment. In environments with washdowns, vibration, and extreme temperatures, the risk of ingress and intermittent connections can drive downtime and repair costs. The design carries UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, with ROHS exemption 6.c, ensuring safety, compatibility, and regulatory compliance across North America and Europe. Its IP68 sealing, 15 gold-plated solder contacts, straight plug, and 1/3 bayonet coupling offer straightforward field installation, while the gasketed backshell protects cables and simplifies replacement. Together with a compact footprint and 71.5 mm length, the solution supports quicker cabling, lower labor costs, and extended service life for machinery across robotics, conveyors, and outdoor equipment.
Product Information
Extended Description
UTS6JC14E15PX Eaton: Plastic plug, with cable gland backshell, with 15 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E15PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E15PX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
43.8 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
12 A UL 4 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against acid bath Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
12 A UL 4 A IEC 12 A CSA
Test voltage
600 V UL 50 V IEC 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
15
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
15
Number of cavity #16
1
Number of cavity #20
14
Salt spray
500 hour
Feature: IP68/69k waterproof rating and robust sealing. Business Impact: Reduces ingress risk and maintenance downtime in washdown and outdoor environments. Application: Ideal for robotics cells, food handling, and outdoor automation where contaminants are a concern. The protection translates to uptime gains and longer service life for critical equipment. Feature: 15-contact plug with gold-plated solder cups. Business Impact: Enables reliable, low-resistance connections with durable contact chemistry, cutting contact resistance drift over time. Application: Conveyor systems and robotic grippers where high current and stable signals are essential. Feature: 1/3 bayonet coupling and straight plug. Business Impact: Simplifies quick mating and field servicing, lowering labor costs and installation time. Application: On-vehicle harnesses and modular control panels that require rapid interconnects. Feature: Backshell sealing gland and cable diameter range 5–14 mm. Business Impact: Protects cables from moisture and debris while accommodating a range of cable jackets, reducing rework. Application: Heavy-duty automation and machinery in harsh environments. Feature: 12 A UL rating (4 A IEC) and 600 V ratings with 250 mating cycles. Business Impact: Delivers predictable electrical performance and lifecycle reliability, aiding compliance and long-term ROI. Application: Industrial controls, automation cabinets, and power distribution modules. Feature: Neoprene insert and plastic shell with IP68 protection. Business Impact: Durable construction resists oil, UV exposure, and chemicals, supporting long-term operation and reduced maintenance cycles. Application: Outdoor enclosures, washdown-ready equipment, and enclosed automation gear.
Get a Quick Quote for a Eaton UTS6JC14E15PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E15PX?
Enquire Now
FAQs
The UTS6JC14E15PX uses a straight plug with a 1/3 bayonet coupling and a sealing gland backshell, designed to mate with standard UTS series receptacles. Ensure correct orientation (X) and align mating pins before engaging the bayonet. The backshell and gasketed seal protect the 5–14 mm cable diameter range, simplifying field cabling and reducing rework in confined spaces.
This plug offers 12 A current rating (UL) and 4 A (IEC), with a test current of 12 A (CSA) and test voltage up to 600 V (CSA/UL) or 50 V IEC. It supports up to 250 mating cycles and operates from -40 °C to 105 °C, making it suitable for tough industrial environments and dynamic automation applications.
Industries like robotics, material handling, outdoor machinery, and washdown-heavy environments benefit most. The IP68/69k sealing, 15-contact configuration, and compact footprint support reliable, compact harness designs in conveyors, automated cells, and rugged control panels.
The connector aligns with UL 1977, IEC 61984, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications help support safety validations, cross-border use, and supply chain compliance for multinational deployments.
The 1/3 bayonet coupling and straight plug enable quick mating and servicing, reducing labor time. Durable IP68 sealing and high mating-cycle life lessen maintenance frequency, while reliable electrical performance lowers field failures, contributing to lower total cost of ownership over equipment lifecycles.
