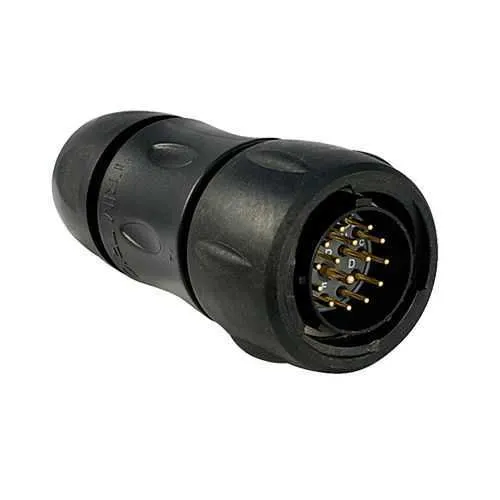

Eaton UTS6JC14E15PY Plastic Waterproof Connector - IP68/69K

Waterproof, drop-in reliability → Reduces ingress risk and downtime in washdown environments, enabling continuous operation of conveyors and outdoor equipment. The IP68/69K rating paired with a sealing gland backshell ensures robust sealing even under high-pressure washdowns. This translates to lower maintenance costs and longer service intervals in harsh facilities. 15 gold-plated solder cup contacts → Delivers low contact resistance, high current integrity, and stable performance under vibration, improving control panel reliability and sensor connectivity in automated lines. The 1/3 bayonet coupling and straight plug design → Enables quick, repeatable mating with minimal tool requirements, speeding harness assembly and field servicing for robotics and packaging lines. Mating cycles rated at 250 → Supports long service life and predictable replacement planning, reducing unexpected downtime. Neoprene insert and plastic shell → Combines durability with resistance to oils, fuels, and UV exposure for outdoor installations, decreasing replacement frequency. Cable diameter range 5–14 mm → Provides flexibility to accommodate a wide variety of field cables without rework, enhancing deployment speed in retrofits and new builds. Layout of 15 positions and Y orientation → Offers clear harness organization and ease of routing in compact panels, optimizing space and wiring density. 12 A UL / 4 A IEC / 12 A CSA ratings and 50 V IEC / 600 V UL test voltage → Confirms compatibility with common industrial power and control circuits while ensuring compliance with regional standards, reducing engineering validation time. Salt spray resistance (500 hours) and temperature range -40 to 105 °C → Supports operation across extreme environments, from cold starts to high-temperature washdowns, ensuring reliability in automotive, marine, and process industries.
