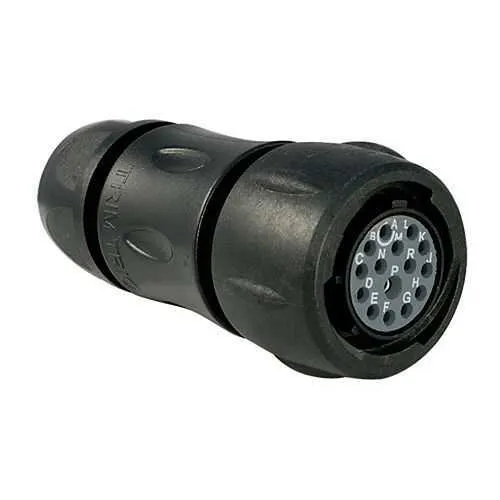

Eaton UTS6JC14E15S Plug - IP68/69k
Part Number: UTS6JC14E15S
Quick Summary
The Eaton UTS6JC14E15S Plug is a plastic waterproof IP68/69k connector designed for reliable field connectivity in harsh industrial environments. Operators struggle with moisture ingress, dirt, and vibration that degrade signal integrity and shorten component life; this connector addresses those challenges with a sealed backshell, neoprene insert, and a robust 1/3 bayonet coupling. Built to IEC 61984, CSA-C22.2 No.182.3, and UL 1977 standards, it also carries RoHS compliance to support global deployment. The combination of rugged sealing, gold-plated solder contacts, and a compact 15-position layout delivers a balance of reliability and installability. For procurement teams, the compact form factor, straight plug orientation, and compatibility with standard backshell provisions translate into faster assembly and reduced field failure rates, improving overall uptime.
Product Information
Extended Description
UTS6JC14E15S Eaton: Plastic plug, with cable gland backshell, with 15 female solder contacts, IP68/69K in unmated conditions; UTS6JC14E15S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E15S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46.1 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
12 A UL 4 A IEC
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline Resistant against mineral oil Resistant against acid bath
Test current
12 A UL 4 A IEC 12 A CSA
Test voltage
50 V IEC 600 V CSA 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
15
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
15
Number of cavity #16
1
Number of cavity #20
14
Salt spray
500 hour
The 15-contact, solder-cup arrangement provides dense signal routing in a single plug, enabling precise control of 15 channels in automation panels while maintaining corrosion resistance through gold-plated contacts. This translates to improved signal integrity, reduced maintenance, and lower replacement costs in harsh environments. The IP68/69k protection and sealing gland backshell keep moisture and dust out during unmated and mated conditions, supporting outdoor machines and washdown environments. With a operating temperature range of -40 °C to 105 °C, it accommodates equipment exposed to extreme temperatures without performance loss, while a cable diameter range of 5–14 mm supports a variety of field-wiring needs. The 1/3 Bayonet coupling offers quick, vibration-resistant mating, and up to 250 mating cycles demonstrate long-term reliability for heavy-use machinery. This connector’s compatibility with UL IEC CSA ratings ensures broad regulatory acceptance across global OEMs, while RoHS exemption 6.c reinforces sustainability considerations. In practice, engineers gain faster installation, fewer intervening seals, and confidence in a plug designed for demanding automation lines and robotics integrations.
Get a Quick Quote for a Eaton UTS6JC14E15S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E15S?
Enquire Now
FAQs
No specialized tooling is required beyond standard hand assembly. The connector uses a Sealing Gland backshell and 1/3 Bayonet coupling for a secure, tool-free mating. Ensure cable diameter falls within 5 to 14 mm and the mating orientation is correct (N). When installed with the appropriate gland and sealing components, the IP68/69k rating is maintained in unmated and mated conditions.
This 15-position plug excels in control panels, robotics, and outdoor equipment where multi-signal wiring is needed in a compact form. Its gold-plated solder cups deliver reliable signal integrity for sensors and actuators, while the IP68/69k protection and rugged housing tolerate washdown, dust, and vibration typical of industrial environments.
The connector complies with IEC 61984, CSA-C22.2 No.182.3, and UL 1977, with RoHS exemption 6.c. These certifications support global deployment in regulated industries, ensuring safety, interoperability, and environmental compliance across machinery and automation systems.
The UTS6JC14E15S offers a test current rating of 12 A UL and 4 A IEC/CSA, and a voltage rating of 50 V IEC and 600 V UL/CSA. It operates from -40 °C to 105 °C, supporting rugged environments. A 15-contact layout and gold-plated solder cups provide reliable performance across industrial control circuits.
With 250 mating cycles and sealed sealing gland backshell protection, field maintenance is reduced and downtime is minimized. The tough housing, corrosion-resistant contacts, and compact 15-way layout lower installation time and replacement costs. For OEMs, the standardized approvals and RoHS compliance streamline supplier qualification and global deployment across machinery fleets.
