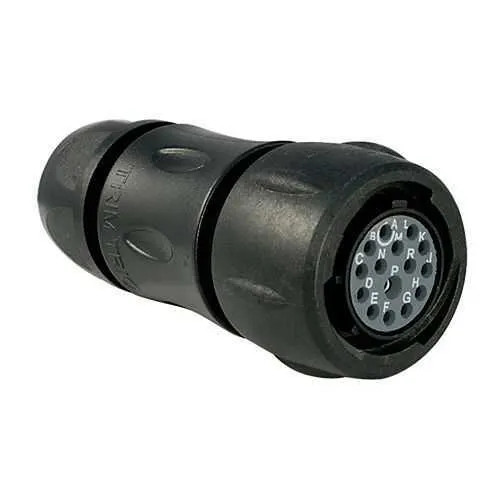

Eaton UTS6JC14E15SW Plastic Waterproof Connector - IP68/69k

IP68/IP69K sealing → Delivers reliable protection against water and dust ingress, reducing field failure rates and maintenance costs in outdoor and wash-down environments. This directly translates to higher machine availability and lower downtime for production lines in food processing, packaging, and robotics applications. 15-position, gold-plated solder cup contacts → Ensures lowcontact resistance and long-term signal integrity across complex harnesses, supporting precise control and reliable sensor/actuator communication in automated systems. The 1/3 bayonet coupling with straight plug design → Simplifies installation and reduces mating misalignment, accelerating installation on conveyor, material handling, and assembly lines while maintaining secure retention under vibration. Operating temperature range of -40 °C to 105 °C and UV/oil/gasoline resistance → Enables operation in extreme environments and helps avoid derating or equipment relocation due to harsh conditions, improving total cost-of-ownership. 14 shell size, 71.5 mm length, 34.6 mm width, 34.4 mm height, 46.1 g weight → Provides clear space planning for compact harnesses and easy integration into control panels with limited clearance. 5–14 mm cable diameter range and backshell sealing gland support → Offers flexibility for a variety of cable assemblies, reducing the need for multiple backshell options and enabling faster, more reliable field install. 250 mating cycles and RoHS/UL/CSA compliant → Delivers predictable lifecycle planning and regulatory confidence for serialized electronics and mission-critical automation equipment. 4 A IEC and 12 A UL current ratings with 50 V IEC and 600 V UL/CSA voltages supported → Enables broad use across low-voltage control circuits and intermediate power feeds, ensuring safe operation within standard industrial applications. UV resistance and salt spray tolerance → Enhances long-term performance in outdoor installations or equipment exposed to corrosive environments, lowering replacement costs in offshore or outdoor machinery. Neoprene insert and plastic shell → Combines resilience with dielectric stability for durable, dependable performance in harsh environments, aiding compliance with safety and performance standards. Cable diameter flexibility and 15-way layout → Supports scalable harness designs and future-proofing for expanding or reconfiguring automation networks.
