Eaton UTS6JC14E15SX Plastic Waterproof IP68/69k Connector - IP68/69K
Part Number: UTS6JC14E15SX
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector is designed for 15‑position power and signal coupling in harsh environments. For engineers wrestling with ingress, damp harnesses, and field maintenance, this UTS plug‑and‑socket solution reduces downtime. Compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, it also supports RoHS exemptions for durable industrial use. In addition to IP68 sealing, its 15 gold-plated solder contacts and 1/3‑bayonet coupling deliver robust, field‑friendly performance. Designed for assembly in variable environmental conditions, the unit operates from -40 to 105 °C and withstands UV exposure and mineral oil contact. With a rugged 71.5 mm length and 34.6 mm width, the connector fits compact harnesses while delivering 12 A (UL) / 4 A (IEC) per channel. This combination translates to reduced rework, longer service life, and safer deployments.
Product Information
Extended Description

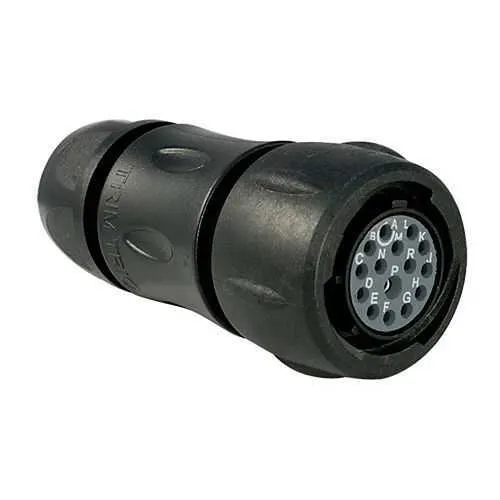

UTS6JC14E15SX Eaton: Plastic plug, with cable gland backshell, with 15 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E15SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E15SX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46.1 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
12 A UL 4 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
12 A UL 12 A CSA 4 A IEC
Test voltage
600 V CSA 50 V IEC 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
15
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
15
Number of cavity #16
1
Number of cavity #20
14
Salt spray
500 hour
Sealing integrity and environmental resilience provide immediate uptime benefits and lower maintenance costs in washdown or outdoor settings. Feature → Business Impact → Application: IP68/69K protection ensures ingress resistance against moisture, dust, and oil, reducing field failure rates and warranty claims; Application: outdoor equipment, marine-adjacent processes, and heavy machinery where washdowns are common. Feature → 15 gold-plated solder cup contacts and a 15‑cavity layout deliver reliable low‑voltage and power distribution with corrosion resistance; Business Impact → longer service life and fewer solder joint failures; Application → control panels and sensor networks in challenging environments. Feature → 1/3 bayonet coupling with a straight plug enables fast, secure mating; Business Impact → reduced assembly time and improved vibration performance; Application → robotics and automated lines with frequent mating cycles. Feature → backshell sealing gland with a delivered connector minimizes installation complexity; Business Impact → simpler harness builds and consistent IP68 protection; Application → OEM harness assemblies in tight instrument panels. Feature → operating range -40 to 105 °C and UV/mineral oil resistance; Business Impact → broader site applicability, fewer replacement parts; Application → outdoor topside equipment and variable-temperature facilities. Feature → 250 mating cycles and rugged plastic shell; Business Impact → lifecycle reliability and predictable maintenance planning; Application → high‑duty industrial applications requiring long service life.
Get a Quick Quote for a Eaton UTS6JC14E15SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E15SX?
Enquire Now
FAQs
For proper installation, align the X orientation, use the provided backshell sealing gland, and connect the straight plug to the corresponding socket. Ensure the cable diameter is within 5 to 14 mm and secure the gland to maintain the IP68 rating. Verify 15-conductor layout matches your harness diagram and that the contacts are properly soldered for reliable electrical performance.
The UTS6JC14E15SX supports 12 A at UL and 4 A at IEC, with a voltage rating of 600 V (UL/CSA/IEC). It features 15 contacts with gold-plated solder cups for corrosion resistance and reliable signal/power transfer across the full operating temperature range.
Yes. It carries an IP68 rating and is UV resistant, with mineral oil and chemical resistance characteristics. Its RoHS exemption and durable plastics, combined with a sealing gland backshell, make it well suited for outdoor, washdown, and harsh industrial environments.
The unit complies with IEC 61984, UL 1977, CSA-C22.2 No.182.3, and RoHS exemptions. These certifications support compatibility across North American and European industrial systems and help ensure regulatory compliance for safety and environmental requirements.
Mating cycles are rated at 250, providing reliable reuse in automation setups. The gold-plated contacts, IP68 sealing, and robust housing reduce rework and maintenance costs while delivering long service life in demanding environments.
