Eaton UTS6JC14E15SY Plastic Waterproof IP68/69k Connector - IP68/69K Rating
Part Number: UTS6JC14E15SY
Quick Summary
Eaton UTS6JC14E15SY connector delivers rugged, IP68/69k waterproof performance for harsh industrial environments. This plug-and-socket solution reduces field failures by providing reliable sealing even in wet, oily, or dusty conditions. The design aligns with UL 1977, IEC 61984, and CSA-C22.2 No.182.3 compliance, with RoHS exemptions where applicable, helping you meet regulatory requirements. By leveraging a 15-contact layout with gold-plated solder cups and a backshell sealing gland, it supports robust automation wiring while minimizing maintenance and rework. Compatible with 1/3 bayonet coupling and a straight plug orientation, it integrates smoothly into Souriau UTS series installations and supports efficient field servicing.
Product Information
Extended Description

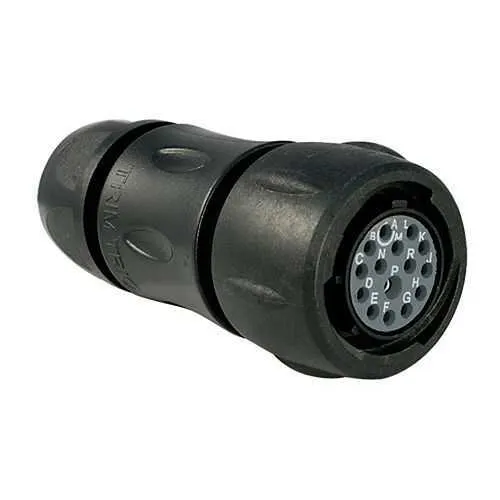

UTS6JC14E15SY Eaton: Plastic plug, with cable gland backshell, with 15 female solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC14E15SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E15SY
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46.1 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
4 A IEC 12 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil
Test current
12 A CSA 12 A UL 4 A IEC
Test voltage
600 V CSA 600 V UL 50 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
15
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
15
Number of cavity #16
1
Number of cavity #20
14
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69k protection with a sealing gland protects against water, dust, and oils, reducing uptime losses and extending service intervals in outdoor machines and mobile equipment. This means lower maintenance costs and higher performance in demanding environments. Feature → 15 contacts with solder cups and gold plating offers low contact resistance and corrosion resistance, ensuring stable signal and power delivery in energised circuits across automation panels and remote installations. Feature → 1/3 bayonet coupling delivers quick, secure mating and reliable retention, enabling faster harness assembly on production lines and easier field repair. Feature → Operating range −40 °C to 105 °C supports equipment operating across temperature extremes, improving reliability for both refrigerated controls and high-heat environments. Feature → Mating cycles of 250 and a backshell with sealing gland enhance longevity and protect against ingress during frequent connections, reducing replacement costs and downtime. Feature → Cable diameter range 5–14 mm provides flexibility for a variety of field cables, simplifying inventory and installation planning. Feature → 71.5 mm length, 34.4 mm height, and 34.6 mm width yield a compact footprint ideal for densely packed panels while maintaining robust protection.
Get a Quick Quote for a Eaton UTS6JC14E15SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E15SY?
Enquire Now
FAQs
The UTS6JC14E15SY uses a straight plug with a backshell and sealing gland designed for quick, secure mating. Ensure the cable diameter falls within 5 to 14 mm, insert the cable through the sealing gland, align the 15 pins, and mate using the 1/3 bayonet coupling until it clicks. Verify polarity and torque requirements, then test continuity to confirm a watertight seal.
This connector is compliant with UL 1977 and IEC 61984, with CSA-C22.2 No.182.3 certification where applicable, and RoHS exemptions noted by the manufacturer. It also carries an IP68 rating for immersion protection and is designed to perform across a temperature range of −40 °C to 105 °C, making it suitable for outdoor and harsh industrial environments.
Yes. The IP68/69k rating provides robust ingress protection against water, dust, and oils, while the UV-resistant plastic housing maintains integrity over time. Its 15-contact layout with gold-plated solder cups supports reliable power and signal transfer, ideal for outdoor sensors, controllers, and mobile machinery in industrial automation.
Key reliability drivers include gold-plated contacts for corrosion resistance, a neoprene insert, and a sealing gland within a plastic shell, all contributing to low contact resistance and long-term sealing. The 1/3 bayonet coupling ensures secure mating, while a 71.5 mm length and compact footprint fit tight spaces without compromising protection or performance.
The connector is part of the Souriau UTS series and uses a straight plug with a Y keying option, delivered with the connector as standard. It supports 15 contacts, 14 cavities plus a dedicated cavity, and a backshell with cable gland, enabling seamless cross-compatibility with UTS harnesses and system-level cable assemblies in industrial automation projects.
