Eaton UTS6JC14E18P Connector - IP68/69K Sealing
Part Number: UTS6JC14E18P
Quick Summary
Eaton Souriau UTS6JC14E18P is a plastic waterproof IP68/69k connector designed for rugged, field-deployed automation and machinery. In harsh environments, moisture intrusion and degraded seals drive downtime and maintenance costs. It aligns with UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards, along with RoHS and REACH compliance to support global deployments. With an 18-pin solder-contact layout and a 5 A IEC rating, this compact plug reduces weight, simplifies cable routing, and accelerates installation for industrial control panels, machinery in outdoor settings, and automation networks.
Product Information
Extended Description

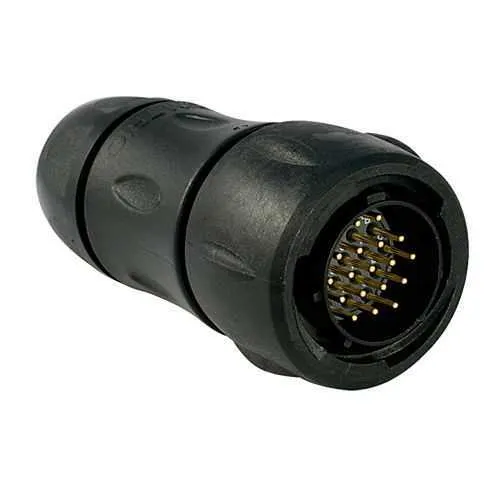

UTS6JC14E18P Eaton: Plastic plug, with cable gland backshell, with 18 male solder contacts, IP68/69K in unmated conditions; UTS6JC14E18P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E18P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
45.6 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
5 A IEC 4 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against mineral oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against oil Resistant against basic bath Resistant against acid bath
Test current
4 A CSA 5 A IEC 4 A UL
Test voltage
50 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
18
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature: IP68/69K sealing with a Sealing Gland backshell protects critical electronics from water, dust and oil ingress, reducing field failures and maintenance costs. Business impact: Longer service intervals and lower total cost of ownership in outdoor equipment and harsh production lines. Application: Industrial automation controllers and field devices requiring reliable environmental sealing. Feature: 18 gold-plated solder cup contacts and a straight plug with 1/3 bayonet coupling deliver dependable signal integrity while enabling quick, tool-free mating. Business impact: Faster installation and fewer reworks during panel assembly or on-site wiring. Application: Sensors, actuators, and control modules in compact assemblies. Feature: Current rating of 5 A IEC (4 A UL) and test current up to 5 A IEC/4 A CSA ensure predictable load handling with a built-in safety margin. Business impact: Compliance with device specifications and reduced risk of overheating in high-dynamic applications. Application: Small to mid-range automation loads and instrumentation. Feature: Wide operating temperature from -40 °C to 105 °C and 250 mating cycles demonstrate robust performance in vibration-heavy environments. Business impact: Reliable operation across seasonal cycles and in mobile equipment, lowering maintenance frequency. Application: Heavy machinery, mining, and outdoor automation panels. Feature: Cable diameter range 5–14 mm, Neoprene insert, and plastic shell with a 14-shell size simplify routing and integration. Business impact: Easier field termination, reduced inventory for compatible cables, and improved reliability under flexing. Application: Cable harnesses in compact enclosures and powered modules. Feature: Compliance with RoHS, REACH and multiple certifications (UL 1977, CSA-C22.2 No.182.3, IEC 61984) assures regulatory alignment and global applicability. Business impact: Streamlined approvals for international deployments and lower risk of non-compliance in cross-border projects. Application: Global manufacturing sites and multinational OEM integrations.
Get a Quick Quote for a Eaton UTS6JC14E18P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E18P?
Enquire Now
FAQs
Plan for the Sealing Gland backshell and ensure the cable diameter falls between 5 and 14 mm. Use the straight plug orientation with the 1/3 bayonet coupling for a secure, vibration-tolerant connection. Verify the 18-pin solder contacts are loaded and aligned, and ensure compatibility with the N orientation and delivered connector configuration to minimize field adjustments.
It provides a 5 A current rating (IEC) with 4 A rating under UL, and supports test current of up to 5 A IEC / 4 A CSA. Voltage ratings are 50 V IEC and 250 V CSA/UL. The contacts are gold-plated solder cup type, suitable for reliable signal and small-power loads in automation networks.
Ideal for outdoor and harsh-industrial environments, including automation panels, sensors, actuators, and control devices where IP68/IP69K sealing is required. Its compact 18-position layout, bayonet coupling, and cable-diameter flexibility make it suitable for equipment subjected to moisture, dust, UV exposure, or oil-based contaminants.
The connector aligns with UL 1977, CSA-C22.2 No.182.3, IEC 61984, RoHS, and REACH. It also offers IP68 sealing and UV resistance, ensuring compliance for global deployments and industrial safety requirements across North America and Europe.
With 250 mating cycles and durable performance in -40 to 105 °C, this connector reduces replacement frequency and downtime. Gold-plated contacts resist corrosion, while a lightweight plastic shell lowers weight and installation effort. The combination of sealing reliability and straightforward mating reduces field maintenance costs and supports faster ROI in automated line applications.
