Eaton UTS6JC14E18PW Plastic Waterproof IP68/69K Connector
Part Number: UTS6JC14E18PW
Quick Summary
UTS6JC14E18PW is a plastic waterproof IP68/69K connector for rugged industrial power and sensor connections. In wet, oily, or dusty environments, ingress protection and robust mating cycles are critical to prevent costly downtime. This Eaton Souriau model meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c, providing IP68 sealing for unmated conditions. As part of the Souriau UTS series, the straight plug with 1/3 bayonet coupling supports fast, secure installation while delivering long-term reliability and ease of procurement for panel builders and integrators.
Product Information
Extended Description

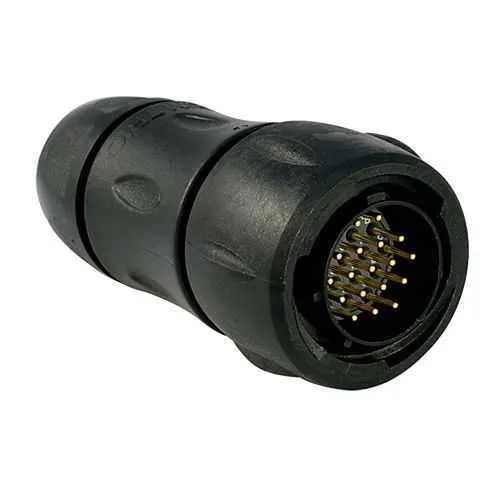

UTS6JC14E18PW Eaton: Plastic plug, with cable gland backshell, with 18 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E18PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E18PW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
45.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
5 A IEC 4 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against mineral oil
Test current
4 A UL 5 A IEC 4 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
18
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/IP69K sealing with an 18-contact solder interface protects critical circuits from water, oil, and dust, enabling reliable operation in washdown and outdoor installations. This reduces field failures and minimizes downtime, while the Neoprene insert and plastic shell offer a lightweight, corrosion-resistant package suitable for demanding manufacturing lines. The 1/3 bayonet coupling enables quick engagement and secure retention, slashing installation time on control panels and in tight cable ducts, which translates to lower labor costs and faster project commissioning. The backshell with sealing gland and integrated cable gland backshell provides proper sealing and strain relief from the outset, simplifying field upgrades and reconfigurations without compromising integrity. With operating temperatures from -40 °C to 105 °C and a 5 A IEC / 4 A UL rating, the connector supports a wide range of automation applications while maintaining impedance and performance. And the 250 mating cycles spec supports durable equipment lifecycles, reducing replacement frequency and total cost of ownership. Compatibility with the Souriau UTS family and a 14-shell size, 18-position layout ensures straightforward integration into existing harnesses and panels, keeping inventories lean and procurement predictable.
Get a Quick Quote for a Eaton UTS6JC14E18PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E18PW?
Enquire Now
FAQs
The UTS6JC14E18PW is part of the Souriau UTS series and uses a 1/3 bayonet coupling with a straight plug and W orientation. Its shell size 14 and 18-contact layout are designed for seamless harness integration with other UTS components, simplifying substitutions or expansions while preserving sealing, mating interfaces, and electrical performance.
Important specs include current rating of 5 A IEC / 4 A UL, test current 4 A UL / 5 A IEC / 4 A CSA, and test voltage of 50 V IEC / 250 V UL / 250 V CSA. It features gold-plated solder cup contacts, 18 positions, and a straight plug arrangement, all contributing to reliable power and signal transmission in automation panels.
Yes. It delivers IP68 sealing (unmated) and IP69K-style protection, with a rugged plastic shell and neoprene insert designed to resist oil, moisture, and vibrations. The backshell with gland offers dependable sealing and strain relief, making it well-suited for washdown lines and outdoor installations.
The connector meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications support global deployment across European, North American, and other markets, helping ensure safety, interoperability, and regulatory alignment in mixed supplier environments.
With 250 mating cycles and robust sealing, this connector reduces maintenance interruptions and field failures, lowering downtime and rework. The fast 1/3 bayonet coupling speeds assembly, while the durable materials and broad temperature range minimize replacement and warranty costs over the equipment lifecycle.
