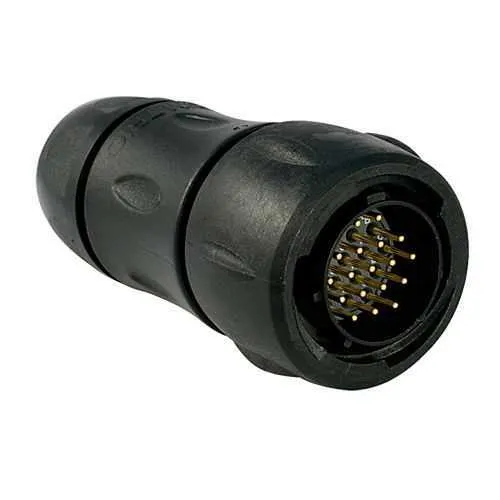

Eaton UTS6JC14E18PZ Connector - IP68/69K Waterproof

IP68/69K sealing and UV and chemical resistance provide reliable operation in wet, oily, and outdoor environments, reducing corrosion risk and costly downtime. This translates to lower maintenance costs and longer service life for automation panels and field devices. The 18-contact layout with gold-plated solder cup contacts ensures stable, low-resistance connections for control signals and sensor data, enabling consistent performance in harsh plants and outdoor sites. The 1/3 bayonet coupling delivers quick, repeatable mating with positive feedback, simplifying installation and reducing commissioning time. A sealing gland backshell and neoprene insert material support robust water ingress protection while accommodating cable diameters from 5 to 14 mm, which simplifies harness design. With a rated current of 4 A (UL) to 5 A (IEC) and voltage up to 250 V, this plug supports common control and IO applications without overdesigning the system. 250 mating cycles indicate durable lifecycle performance, decreasing replacement costs in equipment that requires frequent connector maintenance. The straight backshell orientation and Z-keying ensure correct alignment in tight panels and complex wiring looms, reducing the risk of mis-mating in high-density installations. The plastic shell keeps weight and cost down while resisting environmental stress, making it suitable for compact control enclosures and rugged machinery. The 18-position arrangement aligns with typical automation PLC and fieldbus interfaces, enabling straightforward integration with standard cables and glands. Overall, the UTS6JC14E18PZ balances rugged protection with ease of installation, delivering measurable improvements in reliability, maintenance salary, and total cost of ownership for industrial systems.
