Eaton UTS6JC14E18S Plug - Waterproof Sealed IP68/69K
Part Number: UTS6JC14E18S
Quick Summary
The Eaton Souriau UTS6JC14E18S connector delivers reliable waterproof connectivity for harsh industrial automation environments. Maintenance teams confront moisture ingress and cable gland integrity challenges that drive downtime in outdoor or washdown facilities. This plug meets UL 1977, CSA-C22.2 No.182.3, and IEC 61984 standards and carries RoHS exemption 6.c, providing confidence across supplier audits. With 18 contacts, a 5 A IEC rating, and a sealing backshell, it supports compact, rugged harnesses while resisting vibration and temperature swings from -40 to 105 °C. By combining durable materials with easy installation, it delivers predictable performance, simplifies sourcing for OEMs, and lowers total cost of ownership in automated lines.
Product Information
Extended Description

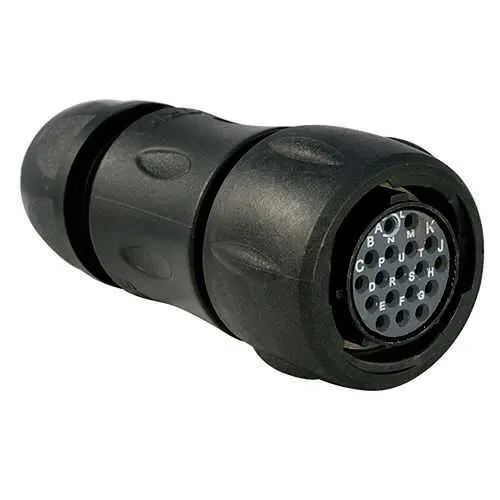

UTS6JC14E18S Eaton: Plastic plug, with cable gland backshell, with 18 female solder contacts, IP68/69K in unmated conditions; UTS6JC14E18S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E18S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
48.3 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
5 A IEC 4 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against acid bath Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment
Test current
5 A IEC 4 A CSA 4 A UL
Test voltage
250 V UL 50 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
18
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature → The UTS6JC14E18S uses a plastic IP68/69K rated shell with a Sealing Gland backshell, providing robust moisture and dust protection. Business Impact → Reduces field failures and maintenance downtime in washdown and outdoor applications; Application → Ideal for outdoor conveyors, robotics, and packaging lines where reliability matters. Feature → 18 gold-plated solder cup contacts arranged in a 18‑position layout. Business Impact → Ensures low contact resistance and long-term signal/power integrity in harsh environments; Application → Suits high-density harnesses and mixed-signal/power feeds in automation panels. Feature → 1/3 bayonet coupling with straight plug orientation. Business Impact → Faster mating/demating cycles and secure retention under vibration; Application → Streamlines assembly on production lines and control cabinets. Feature → Operating temperature range -40 to 105 °C and mating cycles of 250. Business Impact → Supports extreme temperature swings and durable lifecycle in demanding industrial settings; Application → Suitable for near-equipment outdoors or in cold/hot processing environments. Feature → Cable diameter range 5–14 mm with Neoprene insert and Shell size 14. Business Impact → Flexible cabling options and reliable environmental sealing; Application → Fits a wide range of cable sizes in compact, space-constrained equipment. Feature → UL 1977, CSA-C22.2 No.182.3, IEC 61984 compliances and RoHS exemption 6.c. Business Impact → Facilitates compliant sourcing and smoother approvals for global deployments; Application → Aligns with global electrical standards across OEMs and integrators.
Get a Quick Quote for a Eaton UTS6JC14E18S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E18S?
Enquire Now
FAQs
To install, use the straight plug paired with a matching receptacle, ensuring a proper seal with the Sealing Gland backshell. Confirm cable diameter between 5 and 14 mm, and align the 1/3 bayonet coupling for secure mating. The backshell and Neoprene insert support IP68 sealing, while 71.5 mm length and 34.6 mm width fit compact harness routing.
The UTS6JC14E18S provides 18 contact positions with gold-plated Solder Cup contacts, rated 5 A IEC (4 A UL/CSA) and a test voltage of 250 V UL, 50 V IEC, and 250 V CSA. It offers 250 mating cycles and operates across -40 to 105 °C, suitable for demanding automation tasks.
This IP68/IP69K-rated plug excels in washdown environments, outdoor automation, conveyors, robotics, and packaging lines. Its compact 18‑cavity layout and high-density cabling support modern machinery where space is critical, while maintaining reliability in challenging climates.
It complies with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption 6.c. These certifications facilitate cross-border approvals and procurement audits, ensuring the connector meets essential safety and environmental requirements in global installations.
Mating cycles are rated at 250, supporting long-term use in equipment that requires frequent connect/disconnect. The Sealing Gland backshell and Neoprene insert provide robust environmental resistance, reducing maintenance frequency and extending service life in harsh industrial settings.
