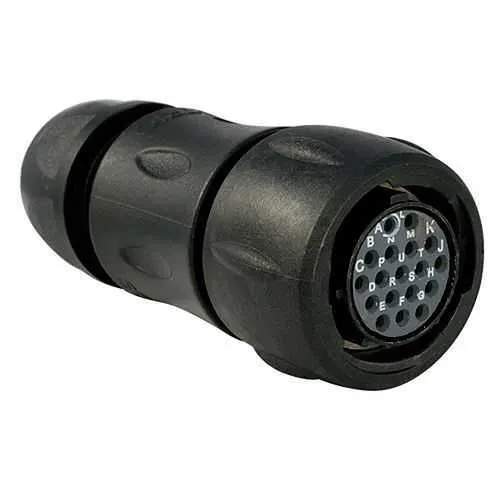

Eaton UTS6JC14E18SW IP68/69k Waterproof Connector IP68
Part Number: UTS6JC14E18SW
Quick Summary
Eaton UTS6JC14E18SW is a waterproof IP68/69k connector designed for rugged machine wiring in outdoor and harsh industrial environments. In challenging settings, moisture ingress, dust, and UV exposure threaten connector longevity and uptime. The design aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, enhancing safety, traceability, and regulatory compliance. With 18 contacts and a compact 71.5 mm length, it delivers reliable connectivity for automation panels and conveyors, while the IP68 sealing and 1/3 bayonet coupling help reduce maintenance and field servicing costs. This makes it well suited for outdoor equipment and harsh-environment installations within industrial automation.
Product Information
Extended Description
UTS6JC14E18SW Eaton: Plastic plug, with cable gland backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E18SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E18SW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
48.3 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A UL 5 A IEC
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against gasoline Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
5 A IEC 4 A UL 4 A CSA
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
18
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K protection prevents moisture ingress and dust intrusion, dramatically increasing uptime in outdoor equipment and harsh environments; ideal for automated warehouses and external control cabinets where reliability is critical. Feature → Business Impact → Application: 18-pin solder cup contacts and gold plating provide solid signal integrity and corrosion resistance, enabling stable sensor networks and I/O wiring in demanding machinery. Feature → Business Impact → Application: 1/3 Bayonet coupling and straight plug simplify field assembly and maintenance, reducing labor time and replacement costs in automation lines. Feature → Business Impact → Application: Cable diameter range 5–14 mm and backshell with Sealing Gland support a variety of field cables, improving installation versatility and reducing stock complexity. Feature → Business Impact → Application: Operating temperature −40 °C to 105 °C and 250 mating cycles deliver long service life, lowering lifecycle costs for harsh-environment installations. Feature → Business Impact → Application: RoHS, UL 1977 and CSA-C22.2 compliance add regulatory assurance for equipment intended for global markets, accelerating project approvals and system integration.
Get a Quick Quote for a Eaton UTS6JC14E18SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E18SW?
Enquire Now
FAQs
Yes. This connector is part of the UTS series and uses the W keying and straight plug configuration with a sealing gland backshell, ensuring compatibility with compatible backshells and straightforward installation in standard Souriau ecosystems.
The connector delivers 4 A rating per UL and 5 A per IEC, with test current 5 A IEC and 4 A UL/CSA. It supports a test voltage of 50 V IEC and 250 V UL/CSA, suitable for low to mid-power automation circuits.
Ideal for outdoor electrical cabinets, automated conveyors, and rugged industrial machinery where IP68/IP69K protection and reliable 18-way connectivity are needed. Its neoprene insert and sealing gland backshell provide robust moisture resistance in harsh environments.
The design complies with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c, supporting global regulatory alignment for safety and environmental requirements.
With 250 mating cycles, gold-plated contacts, and durable IP68 sealing, the connector reduces maintenance frequency and downtime, lowering service costs and extending system uptime across automated lines.
