Eaton UTS6JC14E18SX Connector - IP68/69K
Part Number: UTS6JC14E18SX
Quick Summary
Eaton UTS6JC14E18SX connector provides rugged waterproof connectivity for harsh industrial controls. It addresses ingress risk, frequent maintenance, and cable strain in wet, oily environments. Compliances include IEC 61984 and UL 1977, ROHS exemption 6.c, and CSA-C22.2 No.182.3 for global electrical assemblies. The design supports easy field retrofit and reliable 18-position connections for complex control panels, helping maximize uptime and simplify compliance across global facilities.
Product Information
Extended Description

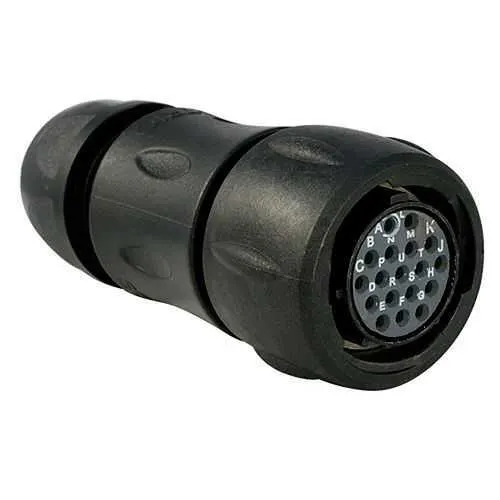

UTS6JC14E18SX Eaton: Plastic plug, with cable gland backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E18SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E18SX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
48.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A UL 5 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 5 A IEC 4 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
18
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/69K sealing is designed to protect unmated connections against water and dust ingress, reducing field failure risk and extending equipment life in outdoor or underground environments. This translates to lower maintenance costs and fewer shutdowns in critical applications like outdoor machinery, packaging lines, and mobile equipment. The 18-contact, gold-plated solder cup layout enables reliable power and signal distribution with minimal resistance changes over time, improving overall system performance and repeatable sensor readings in demanding environments. The 1/3 bayonet coupling and straight plug orientation simplify installation and mating in tight panels, speeding assembly and reducing labor time during commissioning. Neoprene insert and backshell sealing gland enhance environmental resistance, while a plastic shell keeps weight manageable for portable equipment and modular systems. With 250 mating cycles, teams gain confidence in durability during field upgrades and routine maintenance. Operating temperature from -40 °C to 105 °C supports use in extreme climates, and compatibility with 5 A IEC and 4 A UL ratings ensures robust control and signaling in industrial automation. Overall, this series aligns with Souriau UTS standards, delivering reliable, field-ready connectivity for process and factory automation.
Get a Quick Quote for a Eaton UTS6JC14E18SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E18SX?
Enquire Now
FAQs
The UTS6JC14E18SX is a straight plug with 1/3 bayonet coupling and X-keying orientation, designed for the Souriau UTS series. It ships with a sealing gland backshell and Neoprene insert, supporting an 18-contact, 14-position layout. It is suitable for IP68/69K unmated conditions, making it compatible with demanding outdoor or wet environments and a wide range of Souriau accessories.
Electrical performance includes a current rating of 4 A UL and 5 A IEC, with test currents of 4 A (CSA/UL) and 5 A (IEC). Nominal voltages are 50 V IEC and 250 V UL/CSA. The 18 gold-plated solder cup contacts provide reliable conductivity and corrosion resistance for robust power and signal transfer in harsh settings.
Yes. The connector is specified for IP68 sealing in unmated conditions, with a sealing gland backshell and Neoprene insert to resist water, dust, and immersion. The assembly is designed for rugged environments, with UV resistance and chemical resistance to support long service life and reduced ingress-related maintenance.
Certifications include IEC 61984, UL 1977, ROHS exemption 6.c, and CSA-C22.2 No.182.3. These approvals support global deployment in industrial machinery, ensuring compliance with electrical safety, environmental, and material restrictions across diverse markets and regulatory regimes.
The plug measures 71.5 mm in depth, 34.4 mm in height, and 34.6 mm in width, with a weight of 48.3 g. It uses a plastic shell, 14-shell size, and Neoprene insert, with 18 contacts arranged in an 18-position layout. Cable diameter range is 5 to 14 mm, and the backshell is straight with a sealing gland.
