Eaton UTS6JC14E19P Plug - IP68/69K Waterproof
Part Number: UTS6JC14E19P
Quick Summary
The Eaton UTS6JC14E19P is a plastic waterproof IP68/69K connector for rugged industrial applications. This design helps prevent water, dust, and vibration-induced failures in outdoor equipment, machine controls, and automated production lines. Compliant with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with RoHS exemption 6.c, it supports reliable, long-term operation. For engineers and procurement teams, the 19-pin layout, gold-plated contacts, and IP68 sealing translate into reduced maintenance, faster deployment, and lower total cost of ownership. Ideal for marine sensors, outdoor robotics, and heavy equipment in manufacturing, packaging, and energy sectors. The connector's compact form enables easy integration in crowded control panels and tight harness routes.
Product Information
Extended Description

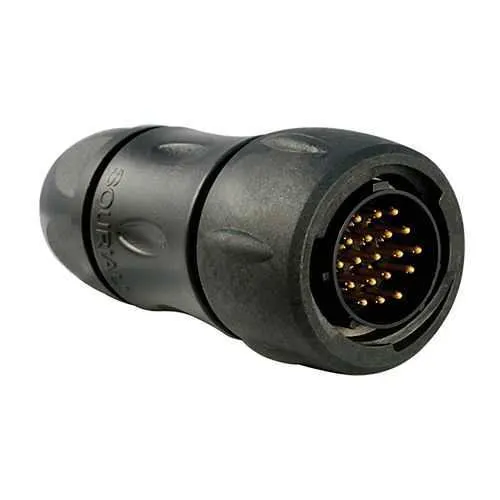

UTS6JC14E19P Eaton: Plastic plug, with cable gland backshell, with 19 male solder contacts, IP68/69K in unmated conditions; UTS6JC14E19P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E19P
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
IEC 61984 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
5 A IEC 4 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil
Test current
4 A UL 4 A CSA 5 A IEC
Test voltage
250 V UL 32 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
IP68/69K sealing provides reliable protection against water, dust, and oils, reducing field failures and warranty costs while enabling outdoor and washdown environments. Feature → Business Impact → Application: The 19-way, gold-plated solder cup contacts ensure low contact resistance and long-term corrosion resistance, delivering stable signal and power transmission for sensing and actuation networks in automation lines. Application: robotics, conveyors, and complex machinery where high reliability matters. Feature → Business Impact → Application: 1/3 bayonet coupling offers quick mating and secure retention, cutting installation time by minutes per field harness and minimizing downtime during maintenance. Application: panels with limited space or frequent reconfiguration. Feature → Business Impact → Application: Backshell with sealing gland and neoprene insert maintains IP68 integrity during cable routing and environmental exposure. Application: outdoor enclosures, marine sensors, and mobile equipment. Feature → Business Impact → Application: Operating temperature from -40 °C to 105 °C and a 250 V, 5 A rating support robust performance in harsh industrial climates. Application: automation controls, heavy equipment, and process lines. Feature → Business Impact → Application: 250 mating cycles and rugged materials deliver predictable lifecycle costs and reduced replacement cycles, supporting total cost of ownership goals. Application: long-term plant modernization and maintenance planning.
Get a Quick Quote for a Eaton UTS6JC14E19P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E19P?
Enquire Now
FAQs
The UTS6JC14E19P ships as a straight plug with a sealing gland backshell designed for Souriau UTS series accessories. The 1/3 bayonet coupling enables secure mating, while the orientation is set to N. For field upgrades, you can pair it with compatible gland backshells to maintain IP68/69K sealing across installations.
IP68/69K protection, a neoprene insert, and materials optimized for oil, UV, and chemical exposure deliver superior sealing and durability. It operates from -40 °C to 105 °C and withstands vibrations, making it ideal for outdoor automation, mining equipment, and marine sensors.
Yes. The UTS6JC14E19P references IEC 61984, UL 1977, and CSA-C22.2 No. 182.3, with RoHS exemption 6.c. While exact declarations may vary by region, the design supports compliance workflows for industrial equipment and safety-certified assemblies.
Current rating is 5 A IEC and 4 A UL, with test current 4 A and test voltage 250 V UL / CSA and 32 V IEC. This makes the connector appropriate for control circuits, sensors, actuators, and small-power distribution within automation panels and rugged machinery.
Use the 1/3 bayonet coupling for secure, fast mating and maintain IP68 sealing by using the backshell with gland. Ensure cable diameter falls within 5 to 14 mm and that mating cycles (approx. 250) align with maintenance planning to maximize uptime and minimize unexpected replacements.
