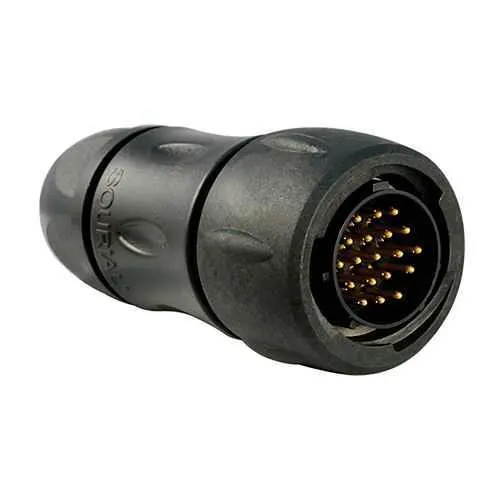

Eaton UTS6JC14E19PW IP68/69k Plug - Waterproof
Part Number: UTS6JC14E19PW
Quick Summary
Eaton UTS6JC14E19PW is a plastic waterproof plug connector built for reliable, harsh-environment electrical wiring in industrial automation. Ingress protection and rugged mating in outdoor or vibration-prone environments are common pain points. It meets IP68/69K sealing and supports IEC 61984, UL 1977, and CSA-C22.2 No.182.3 compliance, with ROHS exemption 6.c. As part of the Souriau UTS series, this plug integrates a 19-position solder cup layout with gold-plated contacts for low contact resistance and long-term reliability. The combination of backshell sealing gland and cable gland backshell simplifies installation and reduces assembly time while enabling durable, low-maintenance connectivity for automated equipment.
Product Information
Extended Description
UTS6JC14E19PW Eaton: Plastic plug, with cable gland backshell, with 19 male solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E19PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E19PW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
4 A UL 5 A IEC
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against oil
Test current
4 A CSA 5 A IEC 4 A UL
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K sealing and straight backplug with 1/3 bayonet coupling. Business Impact: Proven ingress protection and fast, secure mating reduce field failures and downtime in washdown and outdoor environments. Application: Ideal for rugged industrial machinery, outdoor control panels, and portable equipment. Feature: 19-position solder cup contacts with gold plating. Business Impact: Low contact resistance and corrosion protection extend life, lowering maintenance costs and ensuring stable signal integrity in data-heavy automation systems. Application: Control cabinets, sensor networks, and electrical harnesses requiring dense wiring. Feature: Cable diameter range 5 to 14 mm with neoprene insert and Sealing Gland backshell. Business Impact: Flexible fit for varied cable sizes, easier routing, and reliable sealing against moisture and dust. Application: Complex harness assemblies in packaging lines and food processing plants. Feature: Mating cycles of 250 and operating temp range -40 to 105 C. Business Impact: High lifecycle reliability and cold-start capability support long asset life in fluctuating environments. Application: Heavy manufacturing, outdoor substations, and remote automation modules. Feature: 19-position, W orientation, 14-shell size, and 71.5 mm length. Business Impact: Compact, plug-and-play integration with existing Souriau UTS ecosystems reduces design time and stock variety. Application: Retrofit projects and new equipment where standardized connectors streamline procurement and maintenance.
Get a Quick Quote for a Eaton UTS6JC14E19PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E19PW?
Enquire Now
FAQs
The UTS6JC14E19PW supports cable diameters from 5 to 14 mm and ships with a sealing gland backshell, enabling straightforward installation across a range of harness sizes. The 1/3 bayonet coupling provides quick, secure mating, while the neoprene insert maintains a tight seal against moisture and dust during servicing or field upgrades.
This plug is rated for 4 A IEC and 5 A UL test current, with a test voltage of 32 V IEC and 250 V UL. The contact arrangement uses gold-plated solder cups, and the design supports up to 250 mating cycles, offering reliable performance for repeated connect/disconnect cycles in automation equipment.
Yes. The connector features IP68 protection and IP69K readiness, along with UV resistance and robust environmental sealing. It’s designed to withstand vibration, exposure to oils and fuels, and other harsh conditions typical of outdoor or washdown factory environments.
Compliance includes IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with ROHS exemption 6.c. These certifications support global deployments and help satisfy regulatory requirements for industrial automation equipment.
With 250 mating cycles, gold-plated contacts, and a sealing gland backshell, the UTS6JC14E19PW delivers low contact resistance, corrosion resistance, and reduced maintenance intervals. This translates to higher uptime, predictable performance, and lower total cost of ownership for automated systems.
