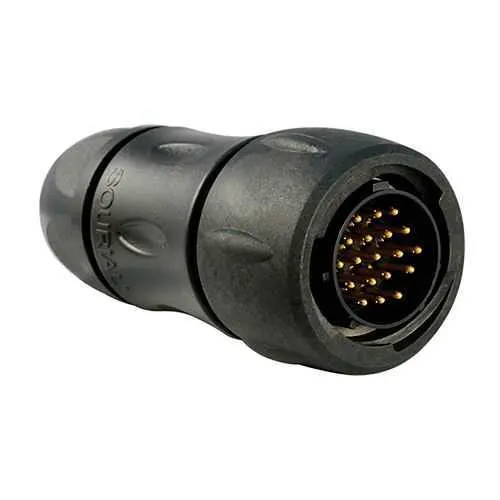

Eaton UTS6JC14E19PX Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC14E19PX
Quick Summary
The Eaton Souriau UTS6JC14E19PX is a plastic waterproof IP68/69K connector for rugged industrial wiring. In harsh environments, ingress, gasket fatigue, and frequent mating cycles can derail project timelines and increase maintenance costs. This unit carries UL 1977 and IEC 61984 compliance, RoHS exemption 6.c, and CSA-C22.2 No.182.3, ensuring regulatory alignment and electrical safety. The UTS series is known for reliable sealing and vibration resistance, making it suitable for conveyors, robotic cells, and field-installed panels. With a 19-contact layout and gold-plated solder cups, it delivers dense connectivity while supporting field service; it pairs well with Souriau backshells and cable glands for robust installations.
Product Information
Extended Description
UTS6JC14E19PX Eaton: Plastic plug, with cable gland backshell, with 19 male solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E19PX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E19PX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A UL 5 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
4 A CSA 4 A UL 5 A IEC
Test voltage
250 V UL 32 V IEC 250 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K sealing provides reliable ingress protection against dust, water, and oils. Business Impact: Reduces unplanned downtime and maintenance costs in harsh environments. Application: automation panels, conveyors, and robotics in dirty production floors. Feature: 19-position contact layout with gold-plated solder cups. Business Impact: Enables dense wiring, dependable signal integrity, and compact harness designs. Application: machine controls and sensor networks in tight panel spaces. Feature: 1/3 Bayonet coupling for fast, secure mating. Business Impact: Shortens assembly time, simplifies field service, and lowers labor costs. Application: quick-connect panels and modular automation setups. Feature: Cable gland backshell and sealing gland backshell. Business Impact: Enhanced cable protection and moisture sealing, improving lifecycle in oil, dust, or UV-rich environments. Application: field-installed connectors on heavy equipment and outdoor systems. Feature: Operating range -40 °C to 105 °C and 250 mating cycles. Business Impact: Wide temperature tolerance and durable reuse reduce replacement frequency and support long-term ROI. Application: automotive and industrial automation where temperature spikes occur. Feature: Shell material is plastic with neoprene insert and 19-way layout. Business Impact: Lightweight, chemical resistance, and easy integration into existing harnesses. Application: wiring harnesses for control cabinets and field devices.
Get a Quick Quote for a Eaton UTS6JC14E19PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E19PX?
Enquire Now
FAQs
To install, align the straight plug with the mating receptacle, connect using the 1/3 bayonet coupling until seated, and secure the backshell with the sealing gland to ensure IP68 protection. Confirm contact alignment (19 positions) and verify gold-plated solder cups are properly inserted. Use the cable gland backshell to seal the cable diameter range (5–14 mm) and ensure rugged enclosure sealing in dirty or oily environments.
Yes. The connector is designed to meet IEC 61984 and UL 1977 requirements, with additional CSA-C22.2 No.182.3 and RoHS exemption 6.c compliance. This ensures electrical safety, regulatory alignment, and reduced risk when integrating into standardized industrial panels, control cabinets, and automation equipment.
The device supports a current rating of 4 A (UL) and 5 A (IEC), with a test current of 4 A (CSA/UL) and test voltage of 250 V (UL/CSA) or 32 V (IEC). Operating temperature spans -40 °C to 105 °C, accommodating wide industrial conditions and enabling reliability in extreme environments.
The IP68 rating guarantees robust sealing against immersion and dust ingress, while environmental resistance includes oil, gasoline, mineral oil, and UV exposure with no degradation after 5 years. The connector also withstands vibrations from 10 to 2000 Hz, making it well-suited for dynamic industrial settings and outdoor installations.
With a mating cycle rating of 250 and gold-plated contacts, the UTS6JC14E19PX offers reliable, long-term performance and corrosion resistance. This translates to lower maintenance costs, reduced downtime, and improved uptime in automated lines, robotics, and control systems, delivering a favorable return on investment over the equipment’s life cycle.
