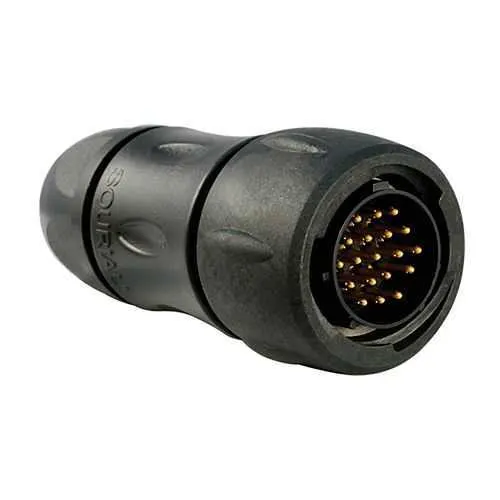

Eaton UTS6JC14E19PY UTS Plug - IP68/69K Waterproof
Part Number: UTS6JC14E19PY
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector provides rugged, 19‑circuit connectivity for harsh environments. Engineers and procurement teams often struggle with reliable sealing, field installation challenges, and long-term reliability in exposed panels. Certified to IEC 61984 and UL 1977, with CSA-C22.2 No.182.3 and ROHS exemption 6.c, it meets international regulatory needs. With a compact 71.5 mm length and IP68 sealing, plus 1/3 bayonet coupling and gold-plated solder cups, this plug connector enables reliable automation across industrial applications while reducing downtime and maintenance costs. Designed for quick field replacement and seamless integration with Souriau UTS accessories, it supports scalable automation projects.
Product Information
Extended Description
UTS6JC14E19PY Eaton: Plastic plug, with cable gland backshell, with 19 male solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC14E19PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E19PY
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
4 A UL 5 A IEC
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline
Test current
4 A CSA 4 A UL 5 A IEC
Test voltage
250 V UL 250 V CSA 32 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/IP69K protection in a plastic shell. Business impact: Keeps moisture and dust out, extending equipment life and reducing maintenance cycles in washdown and outdoor installations. Application: food processing lines, outdoor control cabinets, and marine environments. Feature: 19-position straight plug with 1/3 bayonet coupling. Business impact: Fast, tool-free mating and reliable retention under vibration, lowering installation time and risk of misalignment. Application: robotics, conveyors, and heavy equipment control panels. Feature: Backshell with Sealing Gland and Y orientation. Business impact: Simplified cable glanding and orientation compatibility, enabling safer assembly and improved ingress protection. Application: panel-mounted connectors in compact enclosures. Feature: Gold-plated solder cup contacts and 19 cavities. Business impact: Low contact resistance, corrosion resistance, and durable signal integrity for critical control signals. Application: automation sensors, actuators, and power/signal bundles. Feature: Current rating and electrical specs (4 A UL, 5 A IEC; 250 V). Business impact: Aligns with common automation loads while maintaining a safety margin; reduces risk of overloading and warranty concerns. Application: low-power connectors in industrial machines. Feature: Broad environmental tolerance (-40 °C to 105 °C, UV resistance, resistance to oils and baths). Business impact: Enables reliable operation across variable climates and processing conditions, minimizing downtime due to environmental stress. Application: outdoor equipment, oil and gas, and agricultural machinery.
Get a Quick Quote for a Eaton UTS6JC14E19PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E19PY?
Enquire Now
FAQs
To install the UTS6JC14E19PY, mount the backshell with sealing gland, prepare a cable within 5–14 mm diameter, and terminate the 19 gold-plated solder cups. Use the 1/3 Bayonet coupling for quick, secure mating with the mating half. Ensure IP68 seals are intact and orient the plug as Y for correct alignment.
The connector is rated 4 A UL and 5 A IEC, with a test current of 4 A CSA and 5 A IEC, and a test voltage of 250 V UL/CSA and 32 V IEC. These ratings support low-to-mid power control and sensing in automation panels while maintaining regulatory compliance.
Ideal for automated machinery, outdoor control cabinets, robotics, and conveyors, where IP68 sealing, high vibration tolerance, and corrosion resistance are critical. The 19‑position layout supports complex sensor and actuator networks, while the compact footprint helps fit into tight panel environments.
This plug aligns with IEC 61984, UL 1977, and CSA-C22.2 No.182.3, plus ROHS exemption 6.c. These certifications support regulatory approvals for global deployments, simplify supplier qualification, and help ensure your product lineup meets safety and environmental requirements.
With 250 mating cycles, UV resistance, oil resistance, and salt spray tolerance, the UTS6JC14E19PY offers durable performance and extended service life. The combination of quick mating, robust seals, and reliable electrical contacts reduces downtime, lowers replacement costs, and improves overall equipment effectiveness (OEE) in automation lines.
