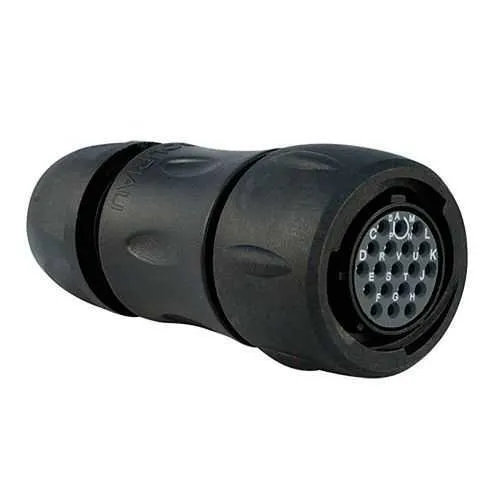

Eaton Souriau UTS6JC14E19SW Connector - IP68/69K Waterproof
Part Number: UTS6JC14E19SW
Quick Summary
The Eaton Souriau UTS6JC14E19SW connector delivers rugged 19‑pin waterproof connectivity for harsh industrial environments. Engineers often struggle with moisture ingress, cable strain, and field maintenance in remote or outdoor equipment. This UTS series plug achieves IP68/69K protection and robust sealing, with 19 gold‑plated solder contacts and a backshell sealing gland for dependable performance. Compliant with IEC 61984, UL 1977, and ROHS exemption 6.c, it also meets CSA standards where applicable, ensuring broader regulatory alignment. In practice, these features reduce field service time, lower maintenance costs, and improve uptime. The combination of a compact plastic shell and a 1/3 bayonet coupling delivers reliable connectivity in automation, conveyors, and rugged machinery, while keeping installation straightforward and scalable.
Product Information
Extended Description
UTS6JC14E19SW Eaton: Plastic plug, with cable gland backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E19SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E19SW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46.7 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c UL 1977 (please contact us for more details)
Current rating
5 A IEC 4 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against gasoline Resistant against acid bath
Test current
5 A IEC 4 A UL 4 A CSA
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K waterproof protection protects against dust, moisture, and immersion, reducing field failures and service calls in outdoor or washdown environments, ideal for packaging lines or outdoor conveyors. 19‑position, gold‑plated solder contacts deliver high‑reliability signal and power transfer with low contact resistance, improving device performance and reducing intermittent faults in machine controls. 1/3 bayonet coupling enables quick, tool‑free mating and demating, shortening changeovers and maintenance windows on factory floors. Backshell sealing gland and neoprene insert enhance environmental sealing, supporting longer service life in aggressive fluids and temperature swings. Mating cycles of 250 ensure durability in high‑cycle automation applications, while the broad operating temperature range of -40 °C to 105 °C supports operations across climates. The connector’s compact footprint (71.5 mm x 34.6 mm x 34.4 mm) and light weight (46.7 g) simplify cabinet layouts and panel mounting, and the 5 A IEC/4 A UL current ratings align with common industrial controls and sensors. Compatibility with Souriau UTS series and standard backshell accessories reduces part proliferation and speeds procurement, while delivered with connector and gland ready for installation. This combination addresses common objections about sealing integrity, downtime, and total cost of ownership in harsh environments.
Get a Quick Quote for a Eaton UTS6JC14E19SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E19SW?
Enquire Now
FAQs
The UTS6JC14E19SW is a plug from the Souriau UTS series and mates with Souriau UTS receptacles designed for 19‑contact, backshell‑sealed configurations. It uses a 1/3 bayonet coupling and comes with a sealing gland backshell, so pairing with the corresponding UTS socket ensures IP68/69K protection and a secure, quick‑connect/disconnect cycle in harsh environments.
This connector supports 5 A current rating per IEC and 4 A per UL, with test voltages of 32 V IEC and 250 V UL. These ratings make it suitable for control circuits, sensors, and low‑voltage power routing in rugged automation equipment, while maintaining safe operation under peak load conditions.
Yes. The plug is IP68 rated for unmated conditions and resistant to UV, oils, mineral oils, and various chemical exposures. Its 19‑position circuit and sealing gland backshell are designed to maintain performance in outdoor, damp, or washdown environments, helping reduce corrosion-related failures and downtime.
Key certifications include IEC 61984 (connector standard), UL 1977, CSA‑C22.2 No.182.3, and ROHS exemption 6.c. These align the UTS6JC14E19SW with common industrial safety and environmental requirements, supporting compliance programs in automated facilities and equipment undergoing global procurement.
Installation is streamlined by delivering with connector and backshell sealing gland, a straight plug, and a 1/3 bayonet coupling for fast mating. The 19‑cavity layout, Neoprene insert, and gold‑plated contacts offer reliable long‑life performance (250 mating cycles) across -40 to 105 °C, reducing replacement cycles and total cost of ownership in demanding industrial applications.
