Eaton UTS6JC14E19SY IP68/69K Connector - UL 1977
Part Number: UTS6JC14E19SY
Quick Summary
The Eaton UTS6JC14E19SY IP68/69K connector is a waterproof plug connecting sensors and actuators in harsh industrial environments. Users often fight moisture ingress, washdown exposure, and frequent mating cycles that disrupt production. UL 1977, IEC 61984, CSA-C22.2 No.182.3, and RoHS exemption 6.c ensure safety, interoperability and environmental compliance. This sealed, lightweight UTS connector enables reliable field installation with Souriau compatibility and long service life. Key features include a 19-position layout, 1/3 bayonet coupling, and a sealing gland backshell for robust sealing. This combination delivers reliable connections in automation panels and mobile equipment. With its IP68 rating in unmated conditions and RoHS compliance, it reduces risk, maintenance, and total cost of ownership. Engineers appreciate the compact 71.5 mm length and 34.4 x 34.6 mm footprint for tight installation spaces.
Product Information
Extended Description

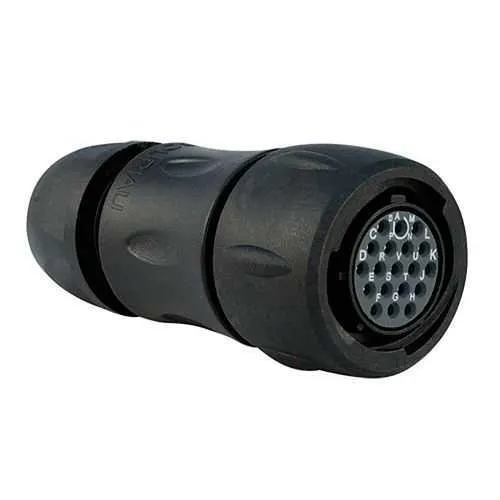

UTS6JC14E19SY Eaton: Plastic plug, with cable gland backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC14E19SY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E19SY
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
46.7 g
Compliances
UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) ROHS exemption 6.c
Current rating
5 A IEC 4 A UL
Environmental conditions
Flammability rating UL94 HB RoHS REACH
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against gasoline
Test current
4 A UL 4 A CSA 5 A IEC
Test voltage
32 V IEC 250 V CSA 250 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
19
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K waterproof design offers unmated protection. Business Impact: Prevents moisture intrusion in wash-down, outdoor, or machinery compartments, reducing failure risk and maintenance cost. Application: Suitable for food processing, water treatment, and marine automation environments. Feature: 19-position gold-plated solder cup contacts enhances signal integrity. Business Impact: Delivers low contact resistance, corrosion resistance, and reliable operation over time. Application: Sensor networks, control panels, and power distribution in harsh plants. Feature: 1/3 bayonet coupling with straight plug orientation Y enables quick, tool-free mating. Business Impact: Speeds assembly and field servicing while maintaining secure connections. Application: Panel installations with limited access behind equipment. Feature: Backshell with sealing gland included improves sealing and strain relief. Business Impact: Simplifies cabling and extends cable life in aggressive environments. Application: New builds and retrofits in demanding wash-down zones. Feature: Wide operating temperature (-40 to 105 C) and 250 mating cycles ensure durability. Business Impact: Supports year-round operation and predictable maintenance schedules. Application: Heavy machinery, outdoor automation, and mobile equipment. Feature: Compliance with UL 1977, IEC 61984, CSA-C22.2, and RoHS exemption 6.c reduces regulatory risk. Business Impact: Facilitates global design-in and interoperability with standard components. Application: International equipment manufacturing and end-user installs.
Get a Quick Quote for a Eaton UTS6JC14E19SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E19SY?
Enquire Now
FAQs
Install within the 5–14 mm cable diameter range, secure the Sealing Gland Backshell, align the Y keying, and mate with the corresponding Souriau UTS series counterpart. Use the 1/3 bayonet coupling for a secure, vibration-resistant fit; ensure proper strain relief and cable routing to maintain IP68 protection.
Current rating is 5 A IEC and 4 A UL/CSA, with a test current of 4 A UL/CSA and 5 A IEC. Test voltage is 32 V IEC and 250 V UL/CSA. Operating temperature ranges from -40 °C to 105 °C, with IP68 sealing and UV-resistant construction suitable for harsh environments.
Yes. The UTS6JC14E19SY offers IP68 protection in unmated conditions, UV resistance, and robust resistance to oils, acids, and basic baths. Its gasketed backshell and gland seal provide reliable sealing in washdown zones and outdoor equipment exposed to the elements.
It complies with UL 1977, IEC 61984, CSA-C22.2 No.182.3, and carries RoHS exemption 6.c status. This ensures regulatory compliance, inter-vendor compatibility, and reduced environmental impact for global industrial equipment.
With 250 mating cycles and a 19-contact layout, the connector supports long service life in dynamic installations. It is compatible with the Souriau UTS series ecosystem, providing plug-and-play replacement and streamlined spares management for automation panels and rugged machinery.
