Eaton UTS6JC14E5PY UTS Series Connector - IP68/69K Waterproof
Part Number: UTS6JC14E5PY
Quick Summary
The Eaton Souriau UTS6JC14E5PY connector is a rugged, waterproof plug designed for demanding industrial environments. In wet, dust-prone lines, ingress protection and reliable mating are essential to uptime and maintenance costs. It is engineered to meet IP68/69K protection in unmated conditions and supports IEC 61984, UL 1977, and CSA-C22.2 No.182.3 certifications, reinforcing safety and regulatory compliance. With five gold-plated solder contacts and a 1/3 bayonet coupling, it delivers secure connections while minimizing field time. The plastic shell and sealing gland backshell enhance durability, while a broad operating temperature range makes it suitable for outdoor installations and sensor-rich applications. This combination translates to reduced maintenance, lower lifecycle costs, and greater system reliability.
Product Information
Extended Description

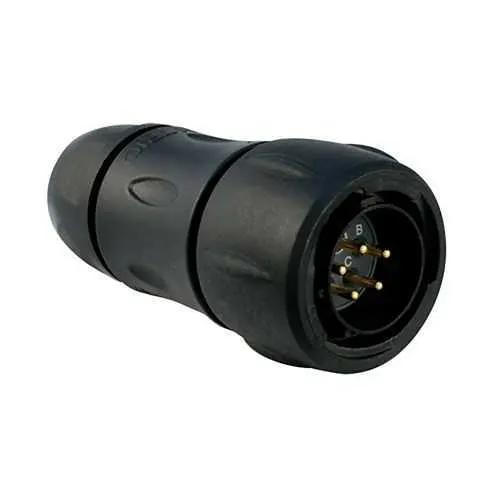

UTS6JC14E5PY Eaton: Plastic plug, with cable gland backshell, with 5 male solder contacts, IP68/69K in unmated conditions, keying Y; UTS6JC14E5PY
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E5PY
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
42 g
Compliances
CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 12 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 HB
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against basic bath
Test current
16 A IEC 12 A CSA 12 A UL
Test voltage
150 V IEC 600 V UL 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/IP69K protection paired with a lightweight plastic shell delivers robust ingress protection and shock resistance. The business impact is fewer water and dust-related failures, lowering maintenance time and spare-parts cost. In practice, installers on packaging lines or outdoor equipment benefit from reliable connectivity even in wash-down zones. A 5-contact, gold-plated solder cup arrangement ensures low contact resistance and long-term reliability. The business impact is stable power and signal transfer with minimal oxidation, reducing repair cycles; this is critical in motor drives, control panels, and sensor hubs across harsh environments. The 1/3 bayonet coupling accelerates mating and reduces tool requirements, enabling faster field replacements and lower downtime. Backshell sealing gland and straight cable entry simplify installation, improving sealing integrity and cable management for OEM harnesses. Operating temperature ranges from -40 to 105 C with a 14 mm shell size and 5 positions, supporting diverse cable options (5–14 mm) and broad equipment compatibility, which lowers design time and total cost of ownership in automation, robotics, and packaging lines. The combination of 250 mating cycles and corrosion-resistant gold contacts provides a durable solution for long-term reliability in industrial settings.
