Eaton UTS6JC14E5PZ Plug Waterproof Connector IP68/69K
Part Number: UTS6JC14E5PZ
Quick Summary
The Eaton UTS6JC14E5PZ plug provides a rugged waterproof connection for harsh industrial environments. In challenging plants, ingress, vibration, and maintenance-heavy wiring can drive downtime and repair costs. The unit carries IP68 sealing and compliance to IEC 61984, UL 1977, and CSA standards, delivering reliable field service. Its compact 5‑cavity design, gold-plated solder contacts, and Z-keying ensure quick, repeatable installations while reducing total cost of ownership for OEMs and maintenance teams. For users demanding durable, compliant connectivity in wash-down and outdoors settings, this connector combines robust protection with straightforward installation and long-term reliability.
Product Information
Extended Description

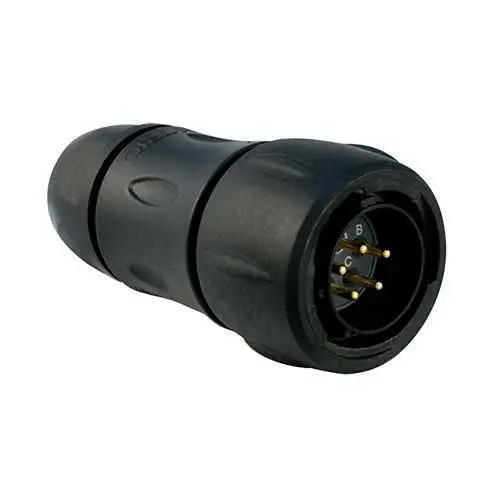

UTS6JC14E5PZ Eaton: Plastic plug, with cable gland backshell, with 5 male solder contacts, IP68/69K in unmated conditions, keying Z; UTS6JC14E5PZ
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E5PZ
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
42 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 12 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against oil
Test current
16 A IEC 12 A CSA 12 A UL
Test voltage
600 V UL 150 V IEC 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: IP68 sealing and 69K protection. Business Impact: protects delicate electronics from water and dust ingress, reducing field failures and downtime. Application: wash-down environments, outdoor installations, and damp facilities. Feature: 5 gold-plated solder cup contacts. Business Impact: maintains low contact resistance over time, improving reliability and reducing maintenance costs. Application: power and control circuits in compact assemblies. Feature: 1/3 bayonet coupling and straight plug. Business Impact: fast, secure mating with vibration resistance, enabling quicker field changes and downtime reduction. Application: automated lines and robotic interfaces in high-vibration settings. Feature: Sealing backshell with gland and cable Ø range 5–14 mm. Business Impact: versatile installation across a range of cable sizes, minimizing secondary parts and inventory. Application: OEM harnesses and field repair kits. Feature: Operating temp -40 to 105 C and 250 mating cycles. Business Impact: supports extreme temperatures and repeated connects, lowering replacement frequency. Application: harsh industrial plants and outdoor machinery. Feature: 16 A IEC, 12 A UL, 600 V test voltage. Business Impact: meets common industrial power and control requirements, simplifying compliance and procurement. Application: heavy-duty automation and control panels. Feature: Neoprene insert, plastic shell, 14 shell size. Business Impact: reliable insulation and mechanical compatibility with compact enclosures, reducing assembly time. Application: compact equipment housings and multi‑connector panels. Feature: 5 contacts, straight plug, 5‑cavity layout. Business Impact: optimized density for small assemblies while preserving signal integrity. Application: multi-signal power/connectivity in single harnesses.
Get a Quick Quote for a Eaton UTS6JC14E5PZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E5PZ?
Enquire Now
FAQs
The UTS6JC14E5PZ uses a 5‑cavity layout with a straight plug and 1/3 bayonet coupling, designed to mate with Souriau UTS series receptacles. It accommodates cable diameters from 5 to 14 mm using a backshell with sealing gland, enabling straightforward integration into existing harnesses without major resections.
The 1/3 bayonet coupling provides quick, secure mating with high vibration resistance. This reduces cycle time during maintenance, minimizes wear on mating interfaces, and ensures a reliable seal when reconnected in harsh environments.
Yes. The UTS6JC14E5PZ is rated for 16 A (IEC) and 12 A (UL) with a test voltage of 600 V. This makes it appropriate for power and control circuits in industrial automation, while maintaining safe margins in demanding conditions.
The connector meets IEC 61984, UL 1977, and CSA standards, with IP68 sealing for reliable ingress protection. RoHS compliance is also noted, supporting environmental and regulatory requirements across many regions.
By delivering ingress protection, long-term contact reliability, and easy field maintenance, the UTS6JC14E5PZ reduces unplanned downtime, lowers maintenance costs, and extends asset life in washdown and outdoor applications. The 250 mating cycles and durable materials further contribute to a favorable total cost of ownership.
