Eaton UTS6JC14E5S Plastic Waterproof Connector - IP68/69K
Part Number: UTS6JC14E5S
Quick Summary
Eaton Souriau UTS series plastic waterproof IP68/69k connector is designed for rugged, wet-environment wiring. Engineers often struggle to maintain IP-rated sealing while ensuring reliable mating in vibration and wash-down conditions. It carries UL 1977, IEC 61984, and CSA-C22.2 No.182.3 certifications, plus ROHS exemption 6.c, ensuring safety, interoperability, and regulatory compliance. Used in industrial automation, machinery, and mobile equipment, this plug combines durability with plug-and-play installation, reducing downtime and lifecycle costs. Its 5-position, gold-plated solder cups and straight backshell simplify routing in tight enclosures, making it a practical choice for rugged control panels.
Product Information
Extended Description

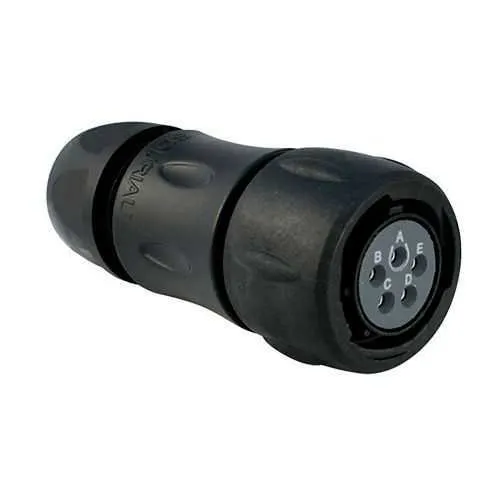

UTS6JC14E5S Eaton: Plastic plug, with cable gland backshell, with 5 female solder contacts, IP68/69K in unmated conditions; UTS6JC14E5S
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E5S
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) ROHS exemption 6.c
Current rating
16 A IEC 12 A UL
Environmental conditions
REACH Flammability rating UL94 HB RoHS
Environmental resistance
Resistant against acid bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz
Test current
12 A CSA 12 A UL 16 A IEC
Test voltage
150 V IEC 600 V UL 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: IP68/IP69K sealing with a neoprene insert provides superior ingress protection and long-term environmental resistance. Business Impact: Reduces field failure rates, extends equipment life, and lowers maintenance costs in wash-down, dust-prone, and outdoor installations. Application: Ideal for mining, food processing, marine, and outdoor automation where cleanliness and reliability are critical. Feature: Five gold-plated solder cup contacts with a 5-position layout ensures robust, corrosion-resistant connections. Business Impact: Improves signal integrity and power transfer while minimizing contact resistance over time. Application: Robotics, sensors, and control panels requiring stable, high-quality electrical connections in harsh conditions. Feature: 1/3 Bayonet coupling with a straight plug and backshell sealing gland enables quick mating and strong vibration resistance. Business Impact: Shorter assembly times, reduced downtime, and improved field service efficiency. Application: Mobile equipment, conveyors, and heavy machinery where frequent connections occur. Feature: Operating temperature from -40 °C to 105 °C and a capable mating cycle rating of 250 ensure endurance in challenging climates. Business Impact: Broadens deployment across indoor and outdoor environments, lowering replacement frequency. Application: Industrial automation in temperature extremes, outdoor installations, and equipment exposed to rapid thermal cycles. Feature: Cable diameter range of 5 to 14 mm and shell size 14 support flexible cabling and retrofit in compact enclosures. Business Impact: Simplifies installation planning and stock management, reducing bespoke solutions. Application: Panel-mounted connectors, motor drives, and field devices with varied harnesses.
Get a Quick Quote for a Eaton UTS6JC14E5S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E5S?
Enquire Now
FAQs
The UTS6JC14E5S is delivered as a plug with a sealing gland backshell, and supports a straight mating orientation. It accommodates 5 contacts with Neoprene inserts and a 5–14 mm cable diameter. For tight spaces, the gland and straight plug design minimize clearance needs while preserving IP68/69K sealing and vibration resistance during field service.
This connector delivers 16 A at IEC standards and 12 A at UL/CSA, with a test voltage up to 600 V (UL/CSA) and 150 V (IEC). It operates effectively from -40 °C to 105 °C, supporting reliable performance in ambient extremes and ensuring continuity in demanding automation or outdoor environments.
Yes. With IP68 rating and 69K sealing in unmated conditions, the connector is designed for wash-down and exposure to dust, moisture, and UV. Its UV resistance and durable plastic shell support use in outdoor automation, marine equipment, and food-processing environments where frequent cleaning and exposure occur.
The UTS6JC14E5S complies with UL 1977, IEC 61984, CSA-C22.2 No.182.3, and ROHS exemption 6.c. These certifications provide assurance of electrical safety, interoperability with global standards, and environmental compliance for regulated industries such as machinery, energy, and automation systems.
With 250 mating cycles and gold-plated solder cups, the UTS6JC14E5S is built for durability in frequent-connect/disconnect scenarios. Plan for periodical inspection of seals and backshell integrity, especially in wash-down or automotive environments. The robust IP68/69K sealing and rugged housing help minimize unplanned outages and extend service life in harsh industrial settings.
