Eaton UTS6JC14E5SW Plug - Waterproof IP68/69K
Part Number: UTS6JC14E5SW
Quick Summary
Eaton Souriau UTS6JC14E5SW is a plastic waterproof IP68/69K connector designed for harsh industrial environments and outdoor equipment. Maintenance teams struggle with reliable sealing and cable protection in wet or dirty conditions. Compliances include UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemptions where applicable. Designed for 5-pin solder-cup contacts in a 5-position layout, it supports reliable power and signal transfer in compact assemblies, while the 1/3 bayonet coupling speeds mating and reduces downtime. This combination delivers robust performance for automation, material handling, and process control systems, helping you meet safety standards and keep critical lines online with minimal maintenance.
Product Information
Extended Description

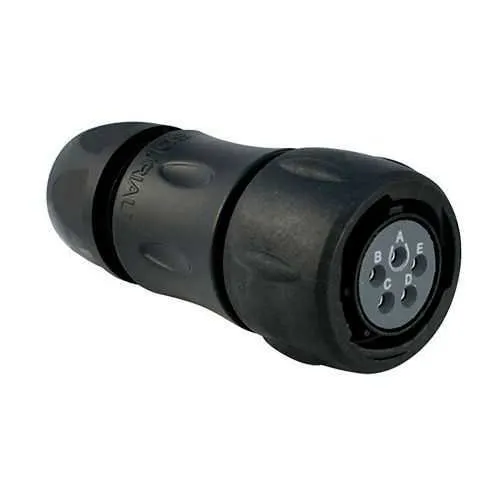

UTS6JC14E5SW Eaton: Plastic plug, with cable gland backshell, with 5 female solder contacts, IP68/69K in unmated conditions, keying W; UTS6JC14E5SW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E5SW
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 12 A UL
Environmental conditions
Flammability rating UL94 HB REACH RoHS
Environmental resistance
Resistant against oil Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
12 A UL 12 A CSA 16 A IEC
Test voltage
600 V CSA 600 V UL 150 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/IP69K sealing and rugged plastic shell protect critical connections from immersion, dust, and vibration, reducing unplanned downtime in outdoor or wash-down environments. The 5-pin solder-cup contacts with gold plating deliver dependable power and signal transfer while resisting corrosion, enabling safer operation on automation lines up to 16 A IEC and 12 A UL at 600 V. The 1/3 bayonet coupling accelerates mating, shrinking wiring and installation time, which translates to lower labor costs and faster panel upgrades. Operating from -40 °C to 105 °C makes it suitable for both cold environments and high-temperature plants, supporting equipment uptime across shifts. Cable diameter flexibility from 5 to 14 mm and a backshell sealing gland simplify harness routing and protect against moisture ingress. With 250 mating cycles, the connector supports long service life in high-demand applications, improving total cost of ownership and maintenance planning. The combination of RoHS-exempt compliances and the Souriau UTS series design ensures interchangeability, reducing spare-part inventory and simplifying supplier management for OEMs and integrators.
Get a Quick Quote for a Eaton UTS6JC14E5SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E5SW?
Enquire Now
FAQs
To install, align the W keying, mate the straight plug into the corresponding receptacle using the 1/3 bayonet coupling, and secure the backshell with a sealing gland. Use cables within 5 to 14 mm diameter and ensure 71.5 mm length and 34.6 mm width fit your panel cutout. The connector ships configured for load with 5 solder-cup contacts.
The connector supports 16 A IEC and 12 A UL current ratings, with a 600 V maximum voltage and a -40 to 105 °C operating range. It features 5 contacts in a 5-position layout, gold-plated solder-cup contacts, and 250 mating cycles, making it suitable for demanding automation and control circuits.
Ideal for harsh industrial automation, outdoor machinery, robotics, and process-control environments, the UTS6JC14E5SW provides reliable sealing (IP68) and vibration resistance. Its 5-pin configuration supports power and signaling needs in compact equipment, while the bayonet coupling accelerates maintenance and reduces downtime on production lines.
This connector aligns with UL 1977, CSA-C22.2 No.182.3, and IEC 61984, with RoHS exemption compliance. These certifications support safety, compatibility, and regulatory requirements across North American and international markets, helping you meet procurement and compliance expectations for mixed-supplier environments.
Plan for gasketed sealing with the backshell gland to maintain IP68 protection in wash-down environments. With 250 mating cycles and gold-plated contacts, expect durable performance with periodic inspection of seals and cables. Its rugged plastic shell and wide operating temperature range help lower replacement frequency and optimize total cost of ownership.
