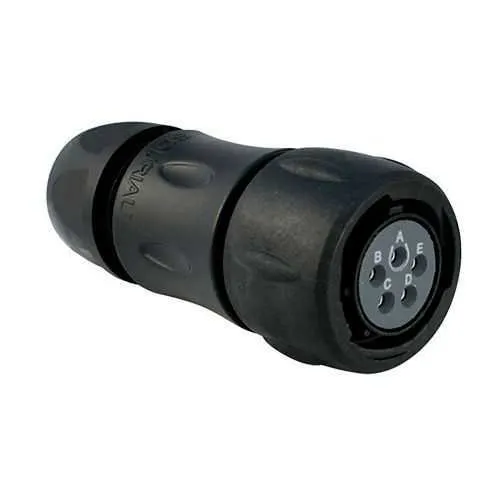

Eaton UTS6JC14E5SX IP68/69K Waterproof Connector - IP68/69K
Part Number: UTS6JC14E5SX
Quick Summary
The Eaton Souriau UTS6JC14E5SX is a plastic waterproof IP68/69k connector for rugged outdoor industrial applications. In demanding environments, moisture, dust, and wear can drive downtime and maintenance costs. This series complies with IEC 61984 and UL 1977, plus CSA-C22.2 No.182.3 and ROHS exemption 6.c, supporting global certification and safe operation. With 5 gold-plated solder-cup contacts, IP68 sealing, and a compact 71.5 mm length, it delivers reliable automation installations and field-service compatibility.
Product Information
Extended Description
UTS6JC14E5SX Eaton: Plastic plug, with cable gland backshell, with 5 female solder contacts, IP68/69K in unmated conditions, keying X; UTS6JC14E5SX
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS6JC14E5SX
Product Length/Depth
71.5 mm
Product Height
34.4 mm
Product Width
34.6 mm
Product Weight
44.6 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) ROHS exemption 6.c CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
16 A IEC 12 A UL
Environmental conditions
RoHS Flammability rating UL94 HB REACH
Environmental resistance
Resistant against oil Resistant against gasoline Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against acid bath Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
12 A UL 12 A CSA 16 A IEC
Test voltage
150 V IEC 600 V UL 600 V CSA
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Neoprene
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
14 mm
Cable diameter - min
5 mm
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/69K sealing with sealing gland backshell provides exceptional ingress protection in unmated conditions, reducing field failures and maintenance frequency, ideal for washdown and outdoor equipment in industrial automation. The 16 A IEC current rating (12 A UL/CSA) and voltages up to 150 V IEC and 600 V UL/CSA offer robust power delivery for motors, sensors, and actuators, improving system efficiency and compliance. Five-position layout with gold-plated solder-cup contacts ensures reliable signal and power transfer while enabling straightforward field or panel wiring, lowering installation time and error rates in machine builds. A 1/3 bayonet coupling and 250 mating cycles translate to quick, secure mating with predictable wear, reducing downtime during routine maintenance and module swaps. Temperature range of −40 to 105 °C plus UV and oil resistance supports coastal, mining, and heavy-industrial environments where uptime matters.
Get a Quick Quote for a Eaton UTS6JC14E5SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTS6JC14E5SX?
Enquire Now
FAQs
The UTS6JC14E5SX uses a 1/3 bayonet coupling, designed for quick, tool-assisted mating and reliable retention. Ensure the backshell is correctly oriented (X) and the cable gland backshell is fully seated to maintain IP68 sealing. Use a straight plug orientation on mating surfaces and verify the 5‑cavity layout aligns with the female solder-cup contacts.
This connector is rated for 16 A at IEC, with 12 A ratings for UL and CSA. It supports voltages up to 150 V IEC and 600 V UL/CSA. It houses five gold-plated solder-cup contacts and is designed for 5 circuits in a 71.5 mm long housing, suitable for moderate to high-current automation devices.
Yes. The connector offers IP68 sealing (IP68/69K unmated) and UV resistance, plus oil and gasoline resistance. Salt spray resistance up to 500 hours further supports outdoor or harsh industrial settings such as conveyors, packaging lines, and marine-adjacent facilities.
The UTS6JC14E5SX complies with IEC 61984, UL 1977, CSA-C22.2 No.182.3, and ROHS exemption 6.c, aligning with global safety and environmental requirements. This helps satisfy regulatory documentation in diverse supply chains and international installations.
With a mating life rating of 250 cycles and five gold-plated contacts, the UTS6JC14E5SX provides repeatable, low-resistance connections over many mating events. Its robust backshell and neoprene insert assist in sealing, reducing maintenance frequency, and lowering total cost of ownership in automation deployments.
